Overview

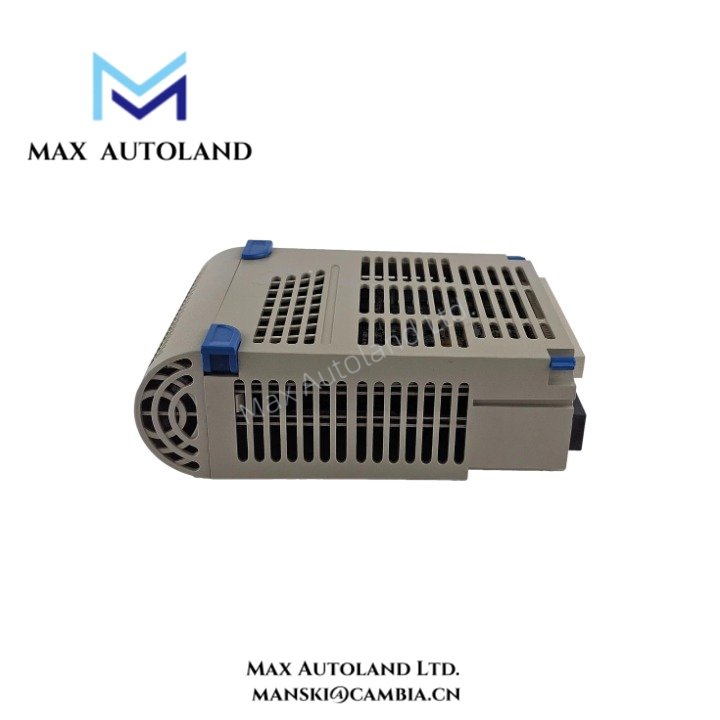

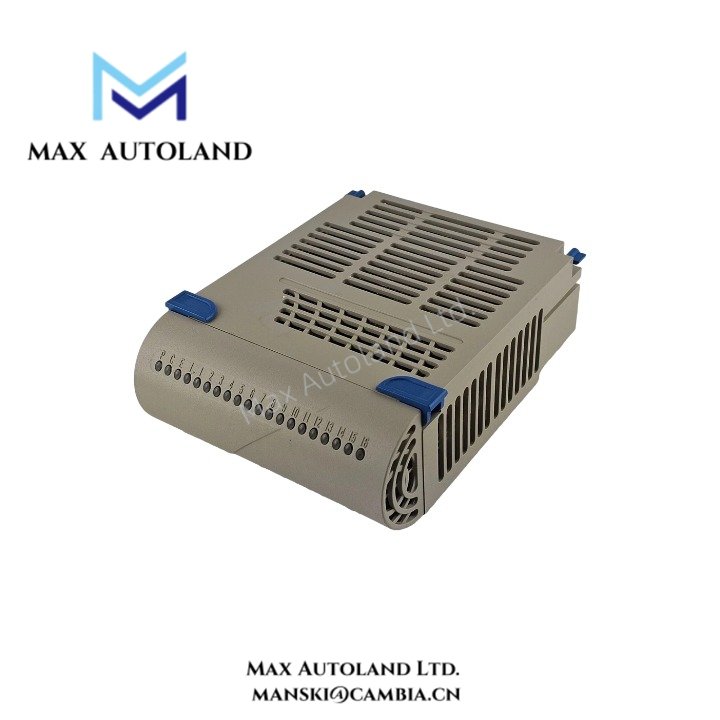

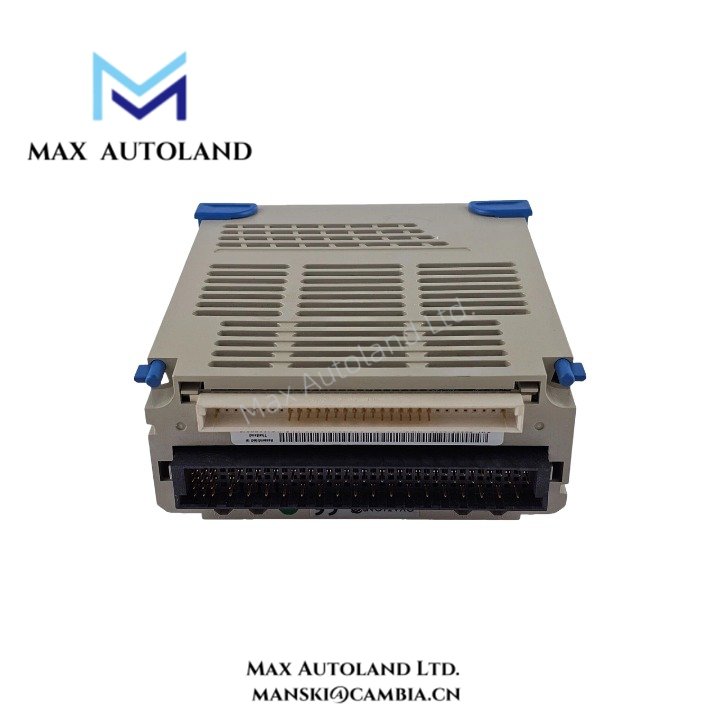

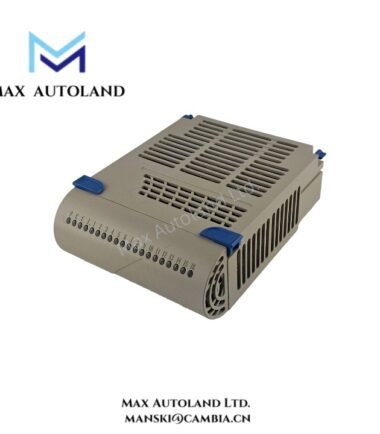

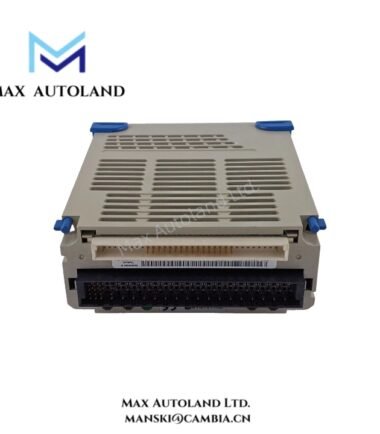

The 5X00058G01 module from Emerson Ovation delivers accurate HART analog input for Ovation DCS systems. It enables simultaneous measurement of up to eight channels, supporting precise process control. The module features robust industrial-grade construction that minimizes interference from electrical noise and ensures long-term operational stability.
Its PMOD-compatible design simplifies integration into standard Ovation racks. Real-time diagnostics and LED indicators allow operators to monitor channel status, while hot-swappable functionality ensures maintenance without system downtime.
Specification
| Specification Category | Parameter / Feature | Details / Values |
|---|---|---|
| Module Identification | Model Number | 5X00058G01 |
| Manufacturer | Emerson Ovation | |
| Module Type | HART Analog Input | |
| Series | Ovation DCS | |
| Electrical | Power Supply | 24 VDC |
| Power Consumption | 4.5 W typical | |
| Signal Type | HART Analog | |
| Input Channels | 8 channels | |
| Isolation | Channel-to-channel and channel-to-backplane isolation | |
| Interface & Connectivity | Rack Interface | PMOD-compatible slot |
| Port Configuration | Terminal block connections | |
| Diagnostic Indicators | LED status for each channel | |
| Mechanical | Mounting Type | Rack-mountable, PMOD slot |
| Dimensions (H x W x D) | 120 mm x 40 mm x 180 mm | |
| Weight | 0.55 kg | |
| Environmental | Operating Temperature | 0–60 °C |
| Storage Temperature | -20–70 °C | |
| Humidity | 5–95% RH non-condensing | |
| Vibration / Shock Resistance | IEC 60068-2-6 / IEC 60068-2-27 compliant | |
| Protection & Compliance | Electrical Noise Protection | EMI/RFI industrial shielding |
| Overvoltage Protection | Built-in transient suppression | |
| Compliance | Emerson Ovation I/A Series standards | |
| Maintenance & Features | Hot-Swap Capability | Yes, allows replacement without system shutdown |
| Diagnostics | Real-time LED status monitoring | |
| Construction | Rugged industrial-grade |
FAQ
Q1: Is the 5X00058G01 module original and new?
A1: Yes, the 5X00058G01 is fully original Emerson Ovation equipment.
Q2: How quickly can you ship this module?
A2: We keep stock available; shipping occurs within 3 days to 2 weeks depending on order size.
Q3: Which logistics services are commonly used?
A3: We typically ship via DHL, FedEx, or UPS for reliable delivery.
Q4: What if the module has quality issues after delivery?
A4: We support returns within 30 days if any manufacturing defect or quality problem occurs.
Q5: How many channels does this HART module support?
A5: 5X00058G01 supports up to 8 HART analog input channels for precise process measurements.
