Overview

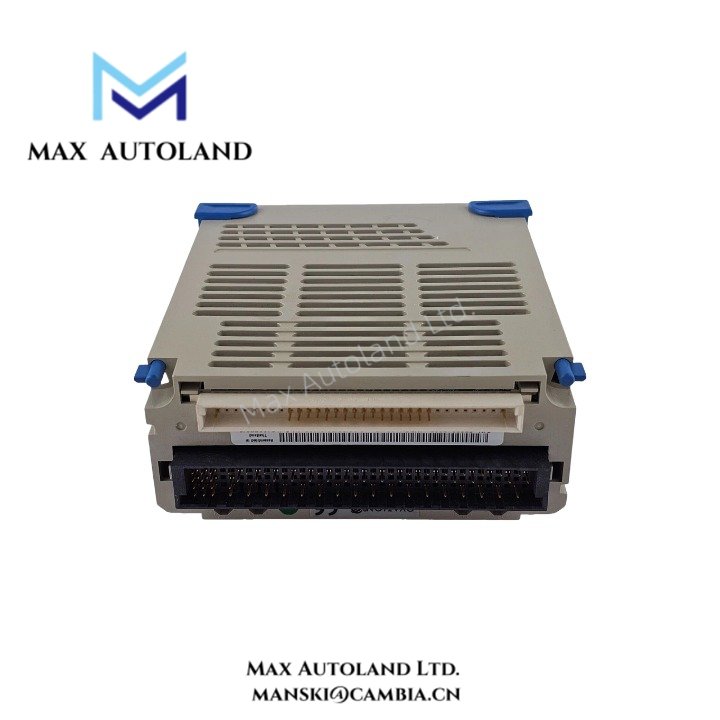

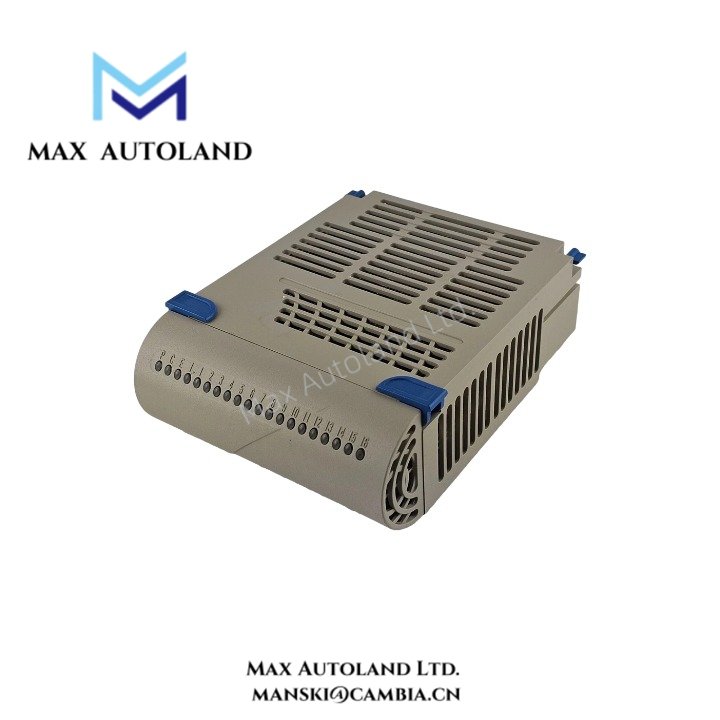

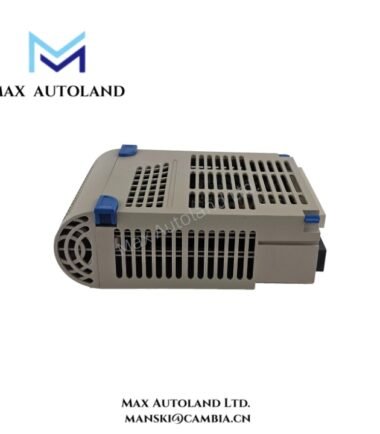

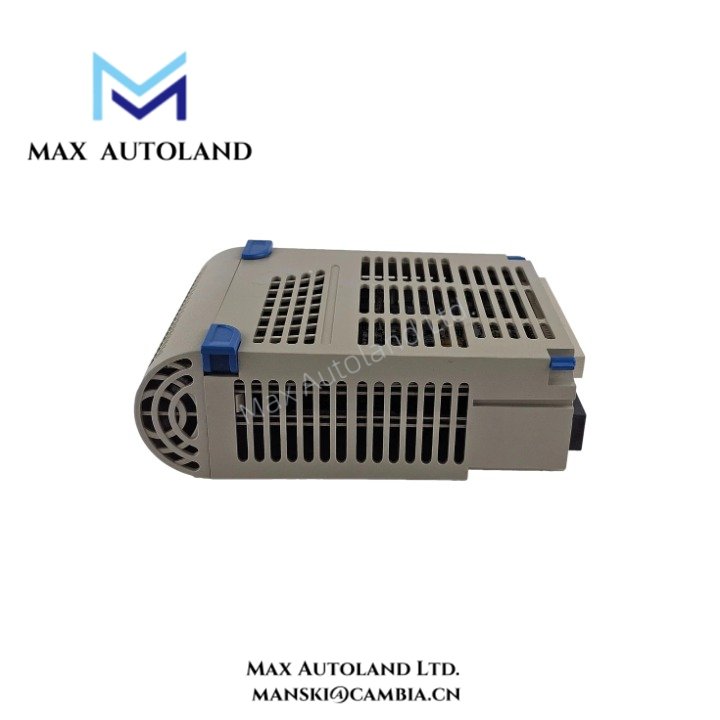

The 5X00058G01 module from Emerson Ovation provides 8-channel HART analog input measurement for Ovation DCS systems. It offers high-resolution data acquisition and ensures accurate process control. Its compact design integrates seamlessly into standard Ovation racks while enabling easy hot-swappable replacement.
Moreover, the module’s industrial-grade construction protects against voltage fluctuations, electrical noise, and harsh environmental conditions. Users can monitor real-time analog signals with LED indicators for each channel, which simplifies diagnostics and maintenance.
Specification
| Specification Category | Parameter / Feature | Details / Values |
|---|---|---|
| Module Identification | Model Number | 5X00058G01 |
| Manufacturer | Emerson Ovation | |
| Module Type | HART Analog Input Module | |
| Series | Ovation DCS | |
| Electrical | Power Supply | 24 VDC |
| Power Consumption | 6 W (typical) | |
| Input Type | Voltage, current analog signals, HART protocol | |
| Input Range | ±10 V, 0–20 mA, 4–20 mA | |
| Input Impedance | >10 kΩ for voltage, 250 Ω for current | |
| Isolation | Channel-to-channel and channel-to-backplane isolation | |
| Channels & Capacity | Number of Channels | 8 Channels |
| Resolution | 16-bit ADC per channel | |
| Accuracy | ±0.1% of full scale | |
| Interface & Communication | Rack Interface | PMOD compatible |
| Data Output | Real-time analog measurements with HART communication | |
| Diagnostic Indicators | LED status for each channel | |
| Mechanical | Mounting Type | Rack-mountable, PMOD slot |
| Dimensions (H x W x D) | 120 mm x 40 mm x 180 mm | |
| Weight | 0.65 kg | |
| Environmental | Operating Temperature | 0–60 °C |
| Storage Temperature | -20–70 °C | |
| Humidity | 5–95% RH non-condensing | |
| Vibration / Shock Resistance | IEC 60068-2-6 / IEC 60068-2-27 compliant | |
| Protection & Compliance | Electrical Noise Protection | EMI/RFI industrial-grade shielding |
| Overvoltage Protection | Built-in transient suppression | |
| Compliance | Emerson Ovation I/A Series standards | |
| Maintenance & Features | Hot-Swap Capability | Yes, allows replacement without system shutdown |
| Diagnostics | LED status, real-time HART communication monitoring | |
| Construction | Rugged industrial-grade |
FAQ
Q1: Is the 5X00058G01 module brand new and original?
A1: Yes, the 5X00058G01 module is fully original Emerson Ovation equipment.
Q2: How fast can you ship this module?
A2: Our stock is available; shipping occurs within 3 days to 2 weeks depending on order quantity.
Q3: Which logistics services are commonly used?
A3: We typically ship via DHL, FedEx, or UPS for reliable international delivery.
Q4: What if the module has quality issues after delivery?
A4: We support returns within 30 days if any manufacturing defect or quality issue occurs.
Q5: What types of analog signals does this module support?
A5: 5X00058G01 supports voltage (±10 V), current (0–20 mA, 4–20 mA), and HART-enabled analog inputs.
