Specification
| Specification | Details |
|---|---|
| Model / Part Number | 5466-1002 |

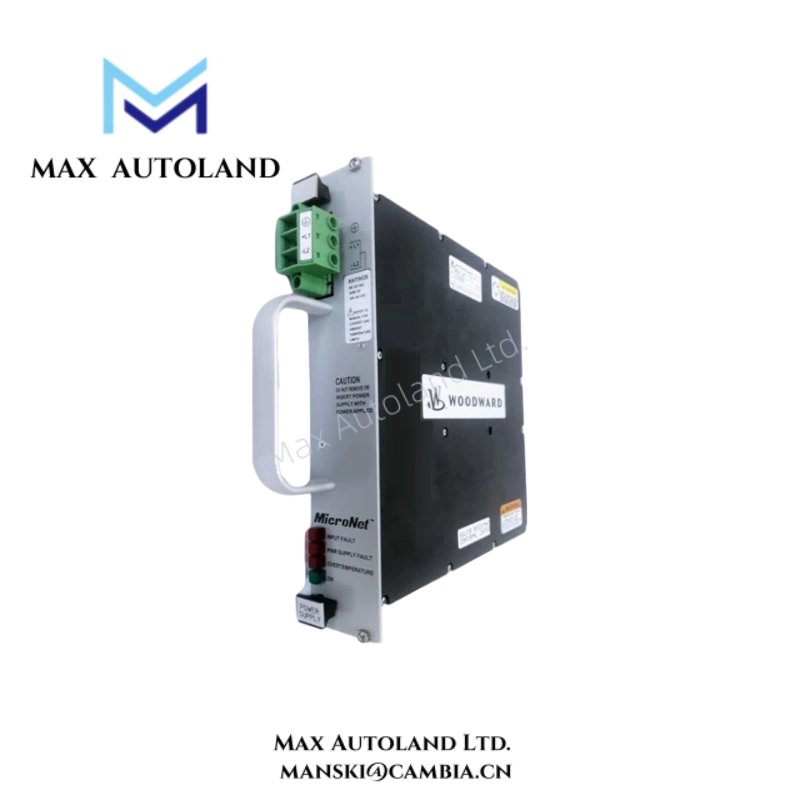

| Product Type | MicroNet Digital Controller Power Supply Module |
| Series | MicroNet‑Plus |
| Input Voltage | 220–250 VAC AC, 50/60 Hz |
| Input Current | Maximum 6.5 A |
| Input Protection | Fused and surge-protected |
| Output Voltage | Regulated DC, +5 V, +15 V, -15 V (for CPU and I/O modules) |
| Output Current | +5 V: 5 A, +15 V: 2 A, -15 V: 1 A |
| Power Rating | Total output: 60 W |
| Ripple & Noise | < 50 mV peak-to-peak (all outputs) |
| Supported System Configurations | Simplex or redundant CPU modules |
| Compatible Chassis Types | Full-size 14-slot or Narrow 8-slot VME chassis |
| Operating Temperature Range | 0°C to +55°C (32°F to 131°F) |
| Storage Temperature Range | -20°C to +70°C (-4°F to 158°F) |
| Relative Humidity | Up to 95% RH, non-condensing |
| Enclosure / Housing | Industrial-grade metal with venting |
| Cooling Method | Convection cooled |
| Vibration Resistance | 5–25 Hz: 0.3 mm, 25–100 Hz: 2 g |
| Shock Resistance | 10 g / 11 ms half-sine pulse |
| LEDs / Indicators | Power ON, Fault, Status |
| Standards & Certifications | CSA, ATEX, CE (LVD & EMC), ABS, DNV |
| Module Type | 2-slot power supply module |
| Connectors / Interface | Standard MicroNet VME bus connectors |
| Safety Features | Over-voltage protection, short-circuit protection, thermal shutdown |
| Weight | Approximately 2.5 kg |
| Dimensions (H x W x D) | 125 mm x 50 mm x 200 mm |
| Mounting | VME rack mount |
| Maintenance / Serviceability | Hot-swappable in field for minimal downtime |
FAQ
A1: It accepts 220–250 VAC (50/60 Hz) mains input, suitable for international voltage standards.Q2: Can the module support redundant CPU systems?
A2: Yes, 5466‑1002 supports both simplex and redundant CPU configurations, depending on the rack design.
Q3: In which chassis can this power supply be mounted?
A3: It fits into either the full‑size 14‑slot VME chassis or the narrow 8‑slot chassis, offering installation flexibility.
Q4: Is the module suitable for humid or harsh industrial environments?
A4: Yes. It operates reliably under up to 95% relative humidity (non‑condensing) and uses a robust metal enclosure for durability.
Q5: What standards and certifications does it comply with?
A5: It meets CSA, ATEX, CE (LVD & EMC), ABS, and DNV standards, ensuring regulatory and safety compliance.
Q6: Is this unit suitable for retrofitting older MicroNet systems?
A6: Yes, the 220 VAC input and regulated output make it ideal for upgrading or restoring legacy MicroNet control racks without major modifications.
