Overview
Specification
| Parameter | Specification |
|---|---|
| Part Number | 2001AZ10101A |

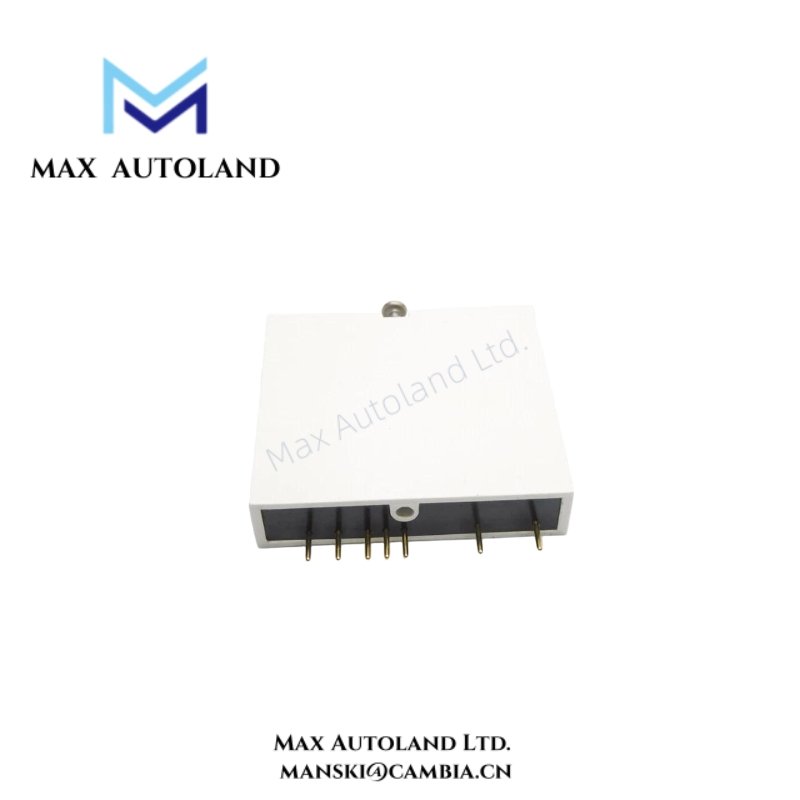

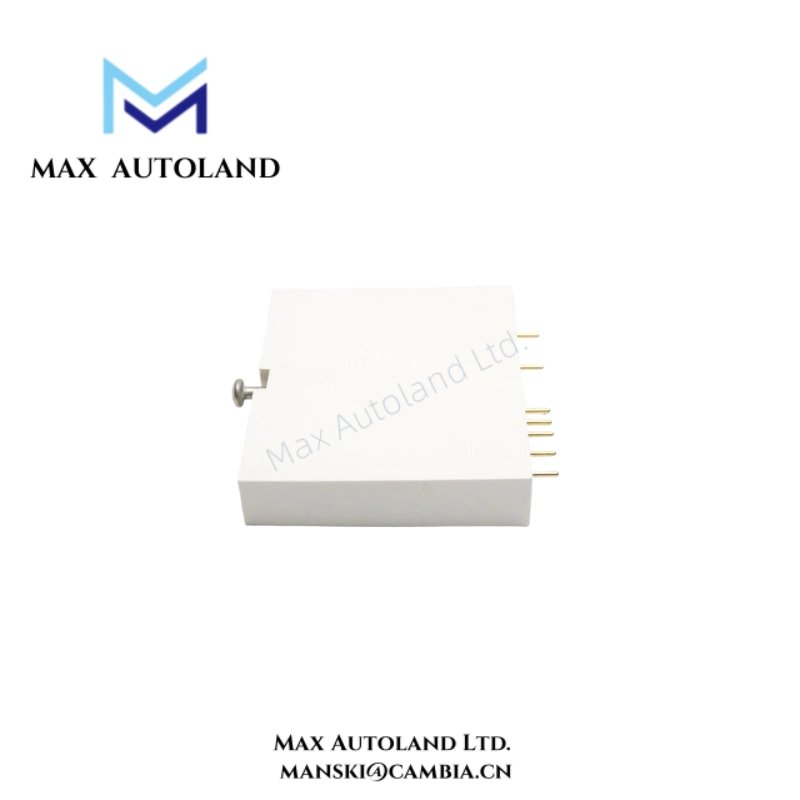

| Product Type | RTD Analog Input Module |
| Compatible Systems | ABB MOD 300 Distributed Control System |
| Input Signal | RTD (Pt100 / Pt1000) |
| Input Connection | 2-wire, 3-wire, 4-wire RTD configuration |
| Input Resistance Range | 10 Ω to 400 Ω |
| Output Signal | MOD 300 digital communication bus |
| Accuracy | ±0.1% of span |
| Linearity | ±0.05% full scale |
| Response Time | <1 second (90% step change) |
| Operating Temperature Range | -40°C to +85°C |
| Storage Temperature | -50°C to +90°C |
| Power Supply | 24 VDC via MOD 300 backplane |
| Power Consumption | 2.5 W typical |
| Mounting | Rack-mounted within MOD 300 chassis |
| Dimensions (HxWxD) | 127 mm × 25 mm × 203 mm |
| Weight | 0.2 kg |
| EMC Compliance | EN 61326, IEC 61000-6-2/4 |
| Safety Certification | CE, UL recognized |
| Environmental Rating | IP20 |
| Diagnostics | Self-check, status LED, error detection |
| Calibration | Field-calibratable |
| Redundancy Support | Hot-swap and redundant configuration compatible |
FAQ
Q1: Which RTD sensors does this module support?
A1: The 2001AZ10101A supports Pt100 and Pt1000 RTD sensors in 2-, 3-, or 4-wire configurations.
Q2: What is the typical accuracy of the module?
A2: Accuracy is typically ±0.1% of span, ensuring precise temperature monitoring.
Q3: Can the module operate in extreme conditions?
A3: Yes, it functions reliably between -40°C and +85°C.
Q4: Is this module easy to integrate into MOD 300 systems?
A4: Absolutely, it fits standard MOD 300 racks and supports hot-swap replacement.
Q5: Does ABB provide calibration or maintenance support?
A5: Yes, ABB offers guidance for installation, field calibration, and diagnostics.
