Overview

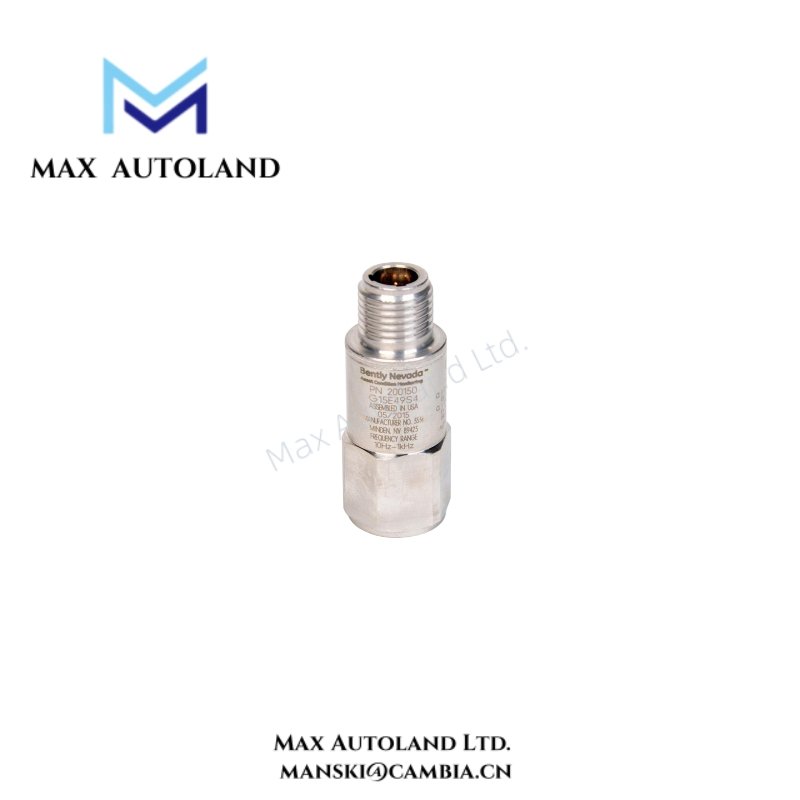

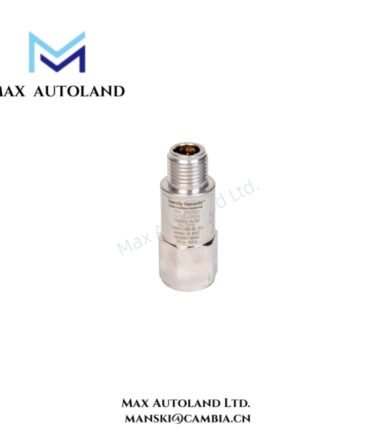

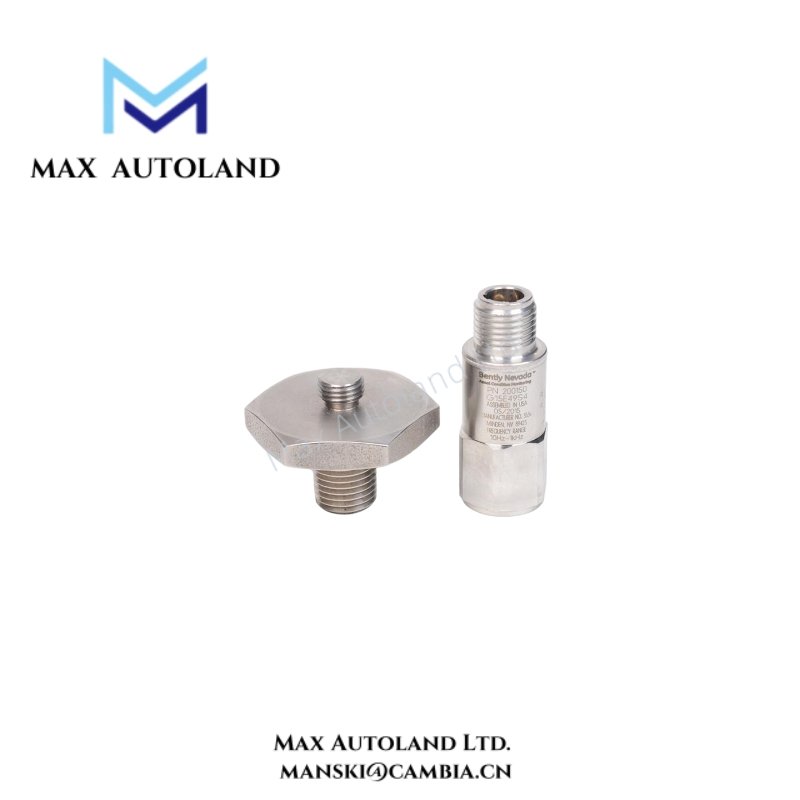

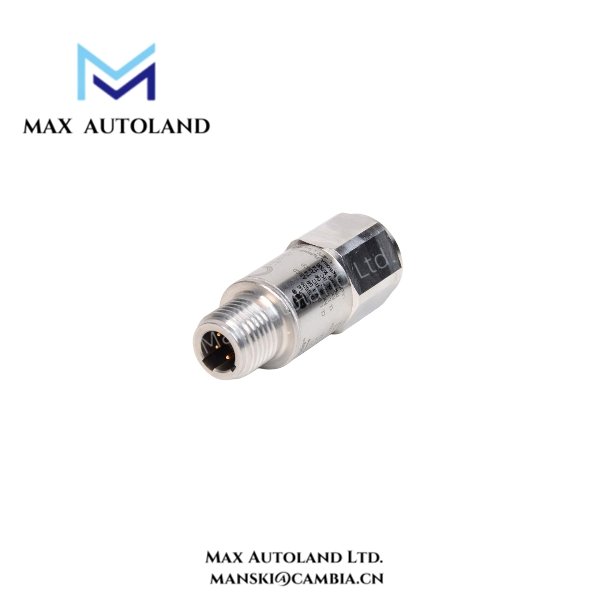

Built with a hermetically sealed stainless-steel housing, the 200150-03-05 offers exceptional resistance to contamination, corrosion, and humidity. Its top-mounted 5-pin connector and 3/8-24 threaded base ensure quick installation and maintenance while maintaining mechanical integrity in harsh industrial environments.
The 20015x Accelerometers contain a piezoelectric sensing device that generates a charge when it is subjected to vibration. The accelerometers electronically convert this charge to a differential voltage signal that is proportional to the acceleration that is parallel to the sensitive axis of the transducer
Specification
| Parameter | Specification |
|---|---|
| Model | Bently Nevada 200150-03-05 |
| Series | Bently Nevada 20015x Accelerometer Series |
| Sensitivity (@ 80 Hz, ±12%) | 10.2 mV/(m/s²) (100 mV/g) |
| Measurement Range | ±245 m/s² (±25 g) |
| Frequency Range (±10%) | 10 to 1,000 Hz (600 to 60,000 cpm) |
| Mounted Resonant Frequency | >20 kHz (>1,200 kcpm) |
| Amplitude Linearity (1–10 g pk) | ±2% |
| Transverse Sensitivity | ≤7% |
| Settling Time (within 5% of bias) | ≤300 ms |
| Excitation Voltage | 4.7 to 5.5 VDC |
| Polarity (Acceleration from Base to Connector) | SIG+ positive with respect to SIG− |
| Quiescent Current | <800 µA |
| Output Bias Voltage | +2.5 ± 0.23 VDC |
| Broadband Electrical Noise (1 Hz–15 kHz) | 14.7 mm/s² (1.5 mg) |
| Electrical Isolation | 600 Vrms |
| Axial Shock Limit | 49,050 m/s² pk (5,000 g pk) |
| Operating Temperature Range | -40°C to +105°C (-40°F to +221°F) |
| Sealing (Hermetic) | ≤5×10⁻⁸ atm·cc/s (3.1×10⁻⁹ atm·in³/s), maximum |
| Relative Humidity | 100% condensing, non-submerged |
| Housing Material | Stainless steel |
| Connector Type | Top-mounted 5-pin |
| Mounting Thread | 3/8-24 UNF |
| Weight (approx.) | 85 g |
FAQ
It offers the same ±25 g measurement range as the standard 200150 but may feature specific connector or cable configurations optimized for certain Trendmaster systems.
Q2: Is the accelerometer compatible with the Trendmaster 2000 system?
Yes. The 200150-03-05 operates fully with the Trendmaster 2000 and ProTIM modules for comprehensive vibration analysis.
Q3: Can this accelerometer handle high-temperature environments?
Yes, it can operate reliably up to +105°C, suitable for most industrial and process equipment.
Q4: What mounting options are available?
It includes a 3/8-24 UNF threaded hole on the base, compatible with standard studs and mounting accessories.
Q5: How often does it require recalibration?
Bently Nevada recommends periodic calibration verification based on the operating environment, typically every 1–2 years.
