Overview

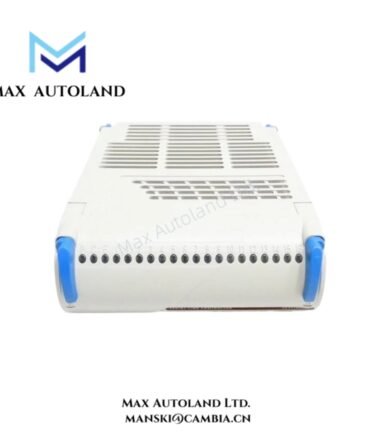

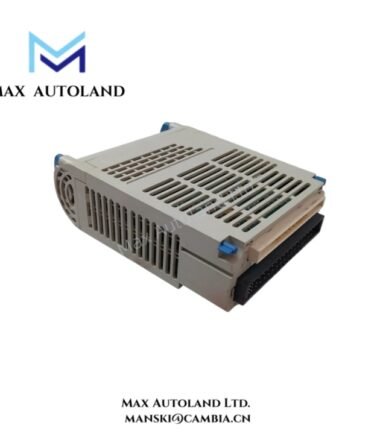

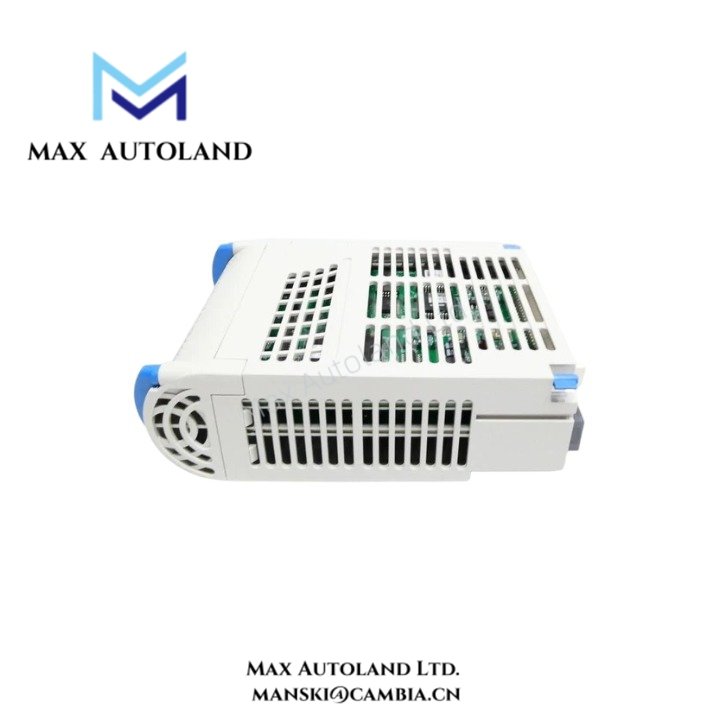

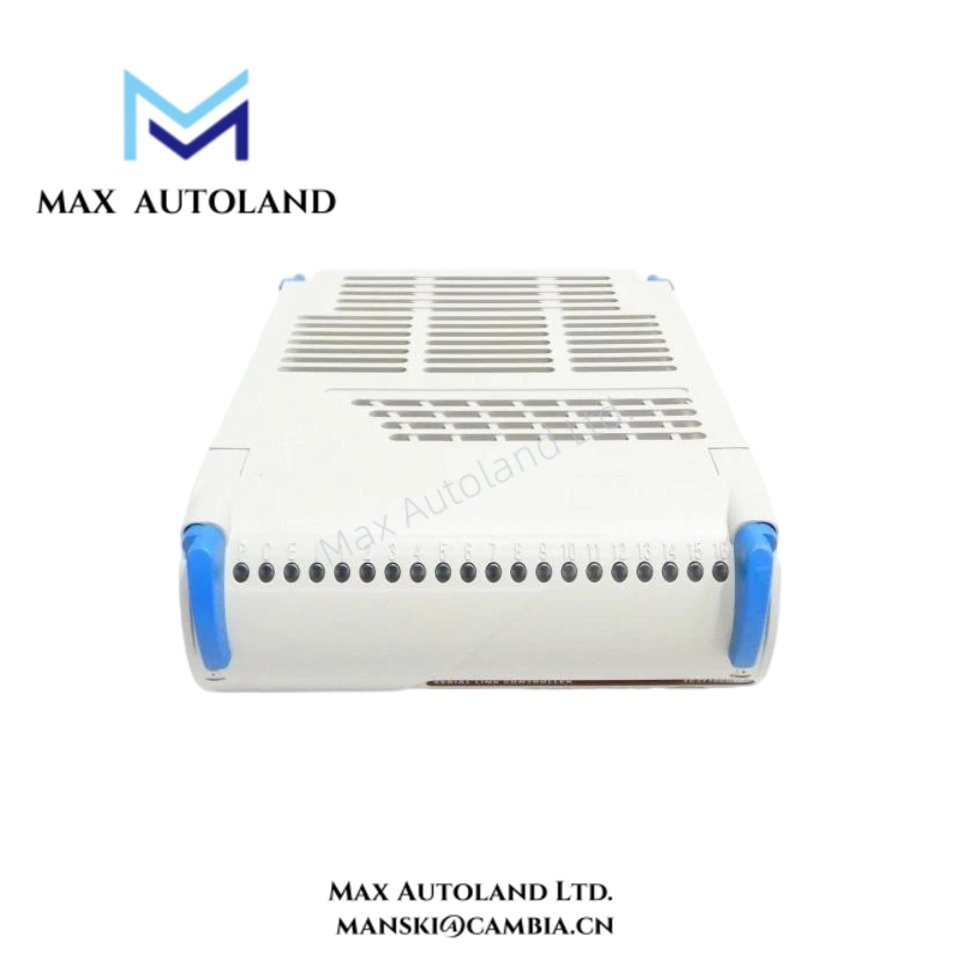

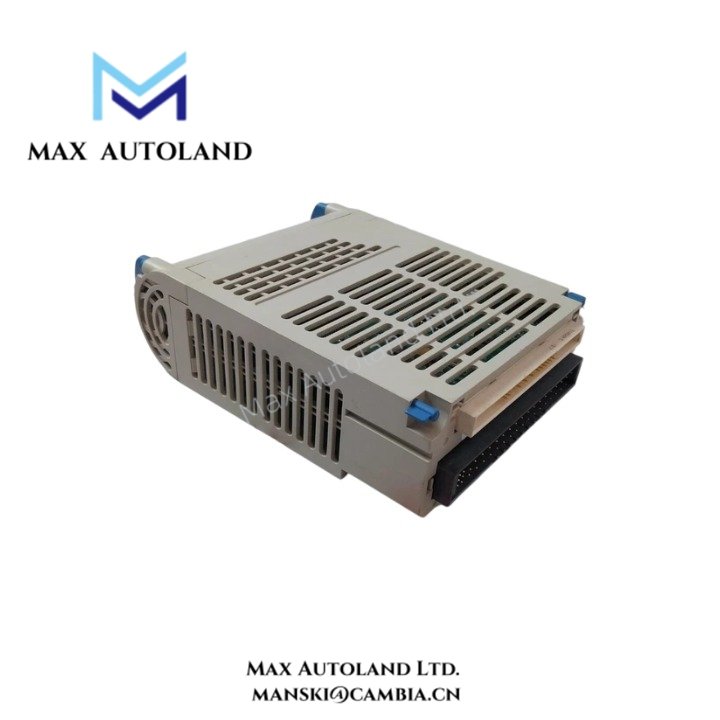

The 1C31166G02 module from Emerson Ovation functions as a serial link controller for Ovation DCS systems. It facilitates high-speed, reliable communication between distributed process controllers and the central control system. The module integrates seamlessly into standard Ovation racks, allowing easy installation and maintenance.
Engineered for industrial environments, the 1C31166G02 withstands electrical noise, voltage fluctuations, and temperature variations. It features real-time status monitoring through LED indicators, which simplifies system diagnostics. Additionally, hot-swappable capability allows replacement without shutting down the entire control system.
Specification
| Specification Category | Parameter / Feature | Details / Values |
|---|---|---|
| Module Identification | Model Number | 1C31166G02 |
| Manufacturer | Emerson Ovation | |
| Module Type | Serial Link Controller | |
| Series | Ovation DCS | |
| Electrical | Power Supply | 24 VDC |
| Power Consumption | 5 W (typical) | |
| Communication Type | Serial Link (RS-485 compatible) | |
| Data Transfer Rate | Up to 1.5 Mbps | |
| Isolation | Channel-to-channel and channel-to-backplane isolation | |
| Interface & Connectivity | Rack Interface | PMOD compatible |
| Port Configuration | Single serial link channel with terminal block connection | |
| Diagnostic Indicators | LED status for communication, errors, and operational status | |
| Mechanical | Mounting Type | Rack-mountable, PMOD slot |
| Dimensions (H x W x D) | 120 mm x 40 mm x 180 mm | |
| Weight | 0.6 kg | |
| Environmental | Operating Temperature | 0–60 °C |
| Storage Temperature | -20–70 °C | |
| Humidity | 5–95% RH non-condensing | |
| Vibration / Shock Resistance | IEC 60068-2-6 / IEC 60068-2-27 compliant | |
| Protection & Compliance | Electrical Noise Protection | EMI/RFI industrial-grade shielding |
| Overvoltage Protection | Built-in transient suppression | |
| Compliance | Emerson Ovation I/A Series standards | |
| Maintenance & Features | Hot-Swap Capability | Yes, allows replacement without system shutdown |
| Diagnostics | Real-time LED status monitoring | |
| Construction | Rugged industrial-grade |
FAQ
Q1: Is the 1C31166G02 module brand new and original?
A1: Yes, the 1C31166G02 module is fully original Emerson Ovation equipment.
Q2: How fast can you ship this module?
A2: We maintain stock; shipping occurs within 3 days to 2 weeks depending on order size.
Q3: Which logistics services are commonly used?
A3: We typically ship via DHL, FedEx, or UPS for reliable global delivery.
Q4: What if the module has quality issues after delivery?
A4: We support returns within 30 days if any manufacturing defect or quality problem occurs.
Q5: What communication standard does this module support?
A5: 1C31166G02 supports RS-485 serial link communication for Ovation DCS integration.
