Overview

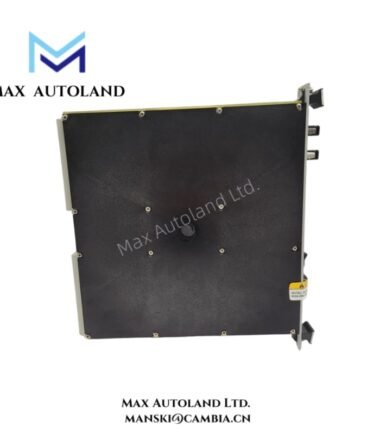

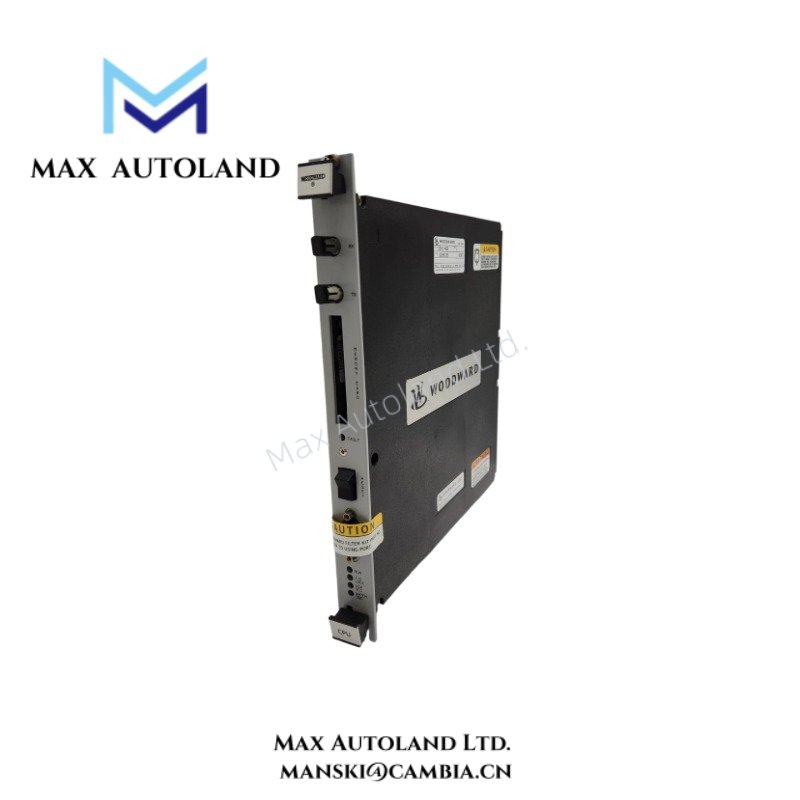

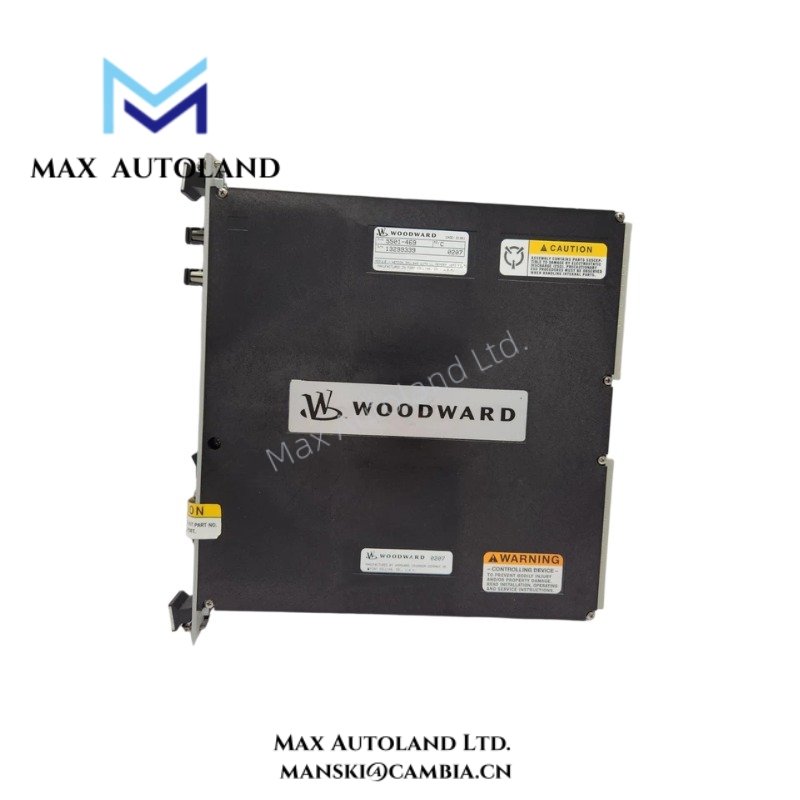

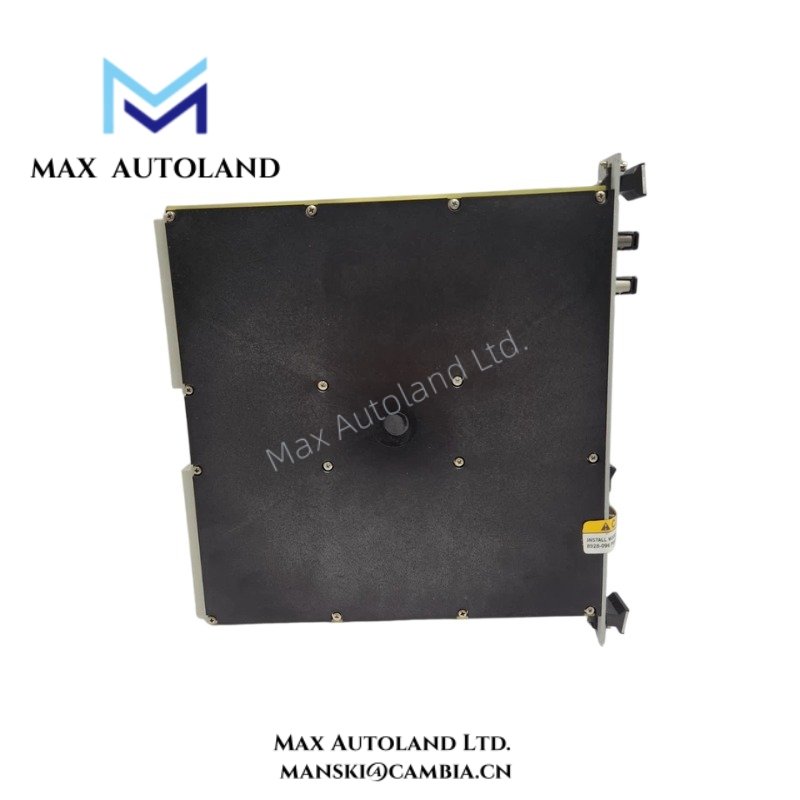

The 5501-469 module from Woodward belongs to the advanced NetCon 5000 actuator control system series.
It delivers precise CPU-based control while ensuring stable communication across multiple industrial automation interfaces.
Moreover, the controller integrates high-performance processing with efficient energy handling for demanding turbine and engine systems.
Engineers rely on 5501-469 for consistent actuator response, improved system reliability, and optimized control loop execution.
Specification
| Parameter | Detailed Specification |
|---|---|
| Model | 5501-469 |
| Manufacturer | Woodward |
| Series | NetCon 5000 |
| Module Type | CPU Actuator Controller Module |
| Processor | Industrial-grade embedded microprocessor with real-time control capability |
| Memory | Integrated non-volatile flash memory for configuration and firmware storage |
| RAM | High-speed volatile memory for real-time data processing |
| Power Supply Voltage | 24 V DC nominal (operating range typically 18–32 V DC) |
| Power Consumption | ≤ 15 W under normal operating conditions |
| Energy Handling | Optimized internal power regulation ensures low heat dissipation and stable energy usage |
| Communication Interfaces | Ethernet (10/100 Mbps), RS-232, RS-485 serial communication ports |
| Network Protocol Support | Supports industrial communication protocols for control system integration |
| I/O Handling Capacity | Supports multiple actuator control loops and signal processing channels |
| Control Accuracy | High-resolution control with fast processing cycle for precise actuator positioning |
| Update Rate | Fast scan cycle suitable for real-time industrial control applications |
| Diagnostics | Built-in self-diagnostics with LED status indicators for power, communication, and faults |
| LED Indicators | Multiple front-panel LEDs for system status, network activity, and error indication |
| Operating Temperature | -20°C to +70°C (-4°F to +158°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 5% to 95% relative humidity, non-condensing |
| Vibration Resistance | Designed for industrial vibration environments per standard control system requirements |
| Shock Resistance | مقاust industrial shock tolerance for stable operation |
| Electromagnetic Compatibility | Complies with industrial EMC standards for noise immunity |
| Mounting Type | Rack-mounted module for NetCon 5000 system chassis |
| Dimensions (W × H × D) | Approx. 160 × 120 × 45 mm |
| Weight | Approx. 0.9 kg |
| Cooling Method | Passive cooling through natural convection |
| Enclosure Material | صنعتی-grade protective housing with heat-resistant materials |
| Connection Type | Secure terminal and backplane connectors for reliable signal transmission |
| Firmware | Field-upgradable firmware via communication interface |
| Redundancy Support | Supports system-level redundancy depending on configuration |
| Application Areas | Turbine control, engine management, power generation, oil and gas automation |
FAQ
Q1: Is the product new and original?
Yes, the 5501-469 module is brand new, original, and supplied in factory condition.
Q2: Do you have stock available?
Yes, we keep 5501-469 in stock and ready for immediate order processing.
Q3: How long does shipping take?
We ship within 3 days to 2 weeks, depending on order size and logistics arrangements.
Q4: What logistics services do you use?
We typically use reliable carriers such as DHL, ensuring fast and secure delivery worldwide.
Q5: What if there is a quality issue?
We support returns within 30 days if the 5501-469 module shows any quality problems.
Q6: What communication interfaces does this module support?
The 5501-469 supports Ethernet and serial interfaces, enabling flexible system integration.
