Overview

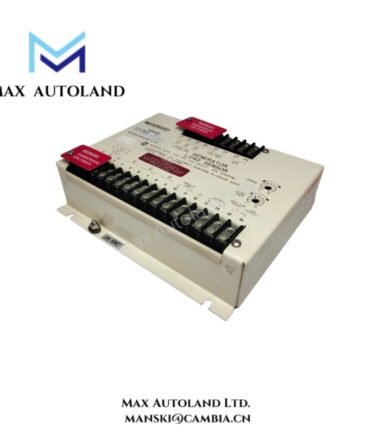

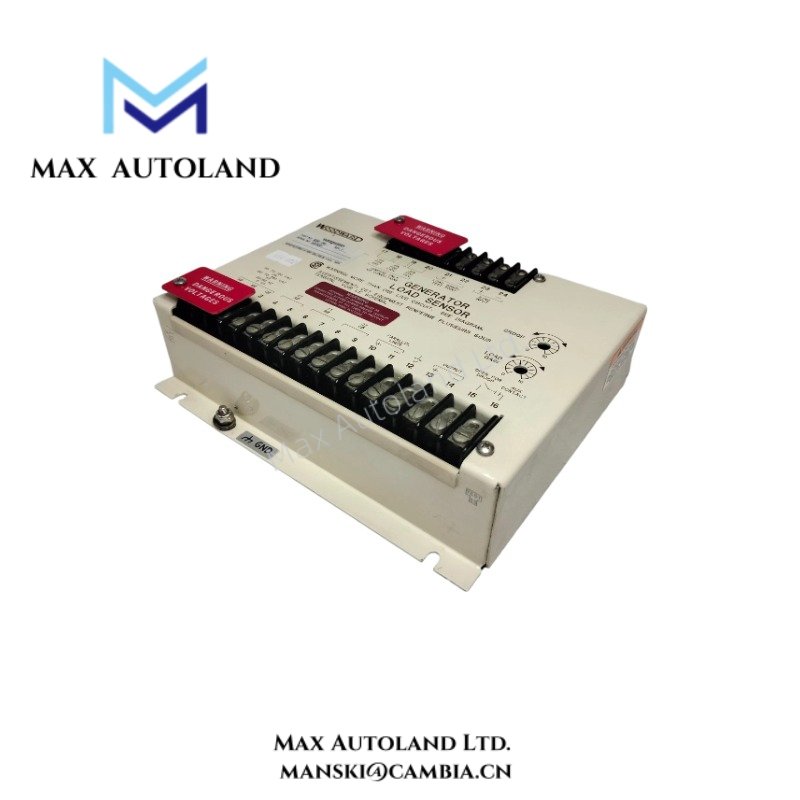

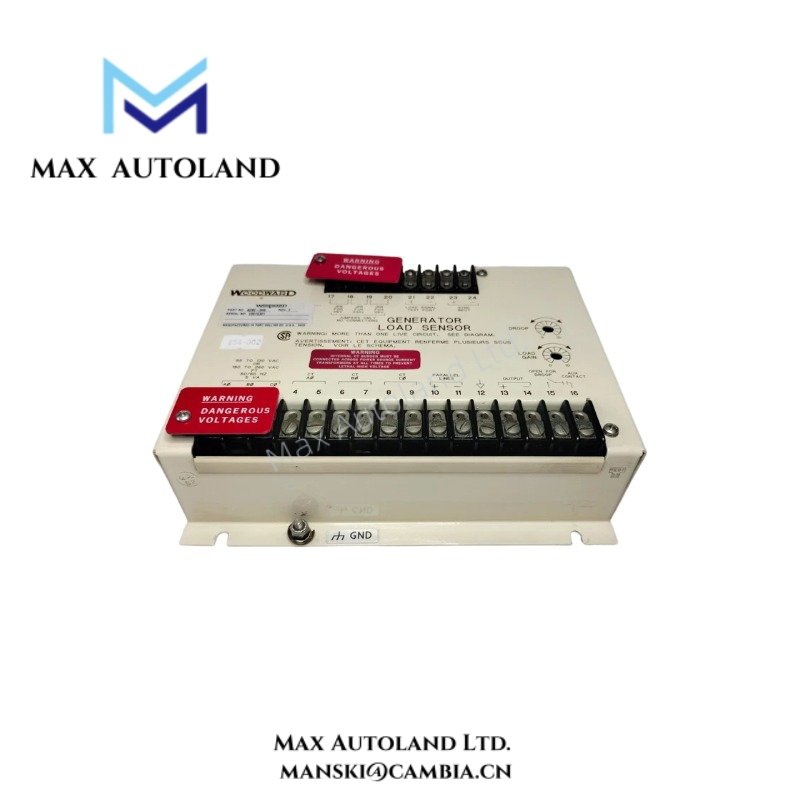

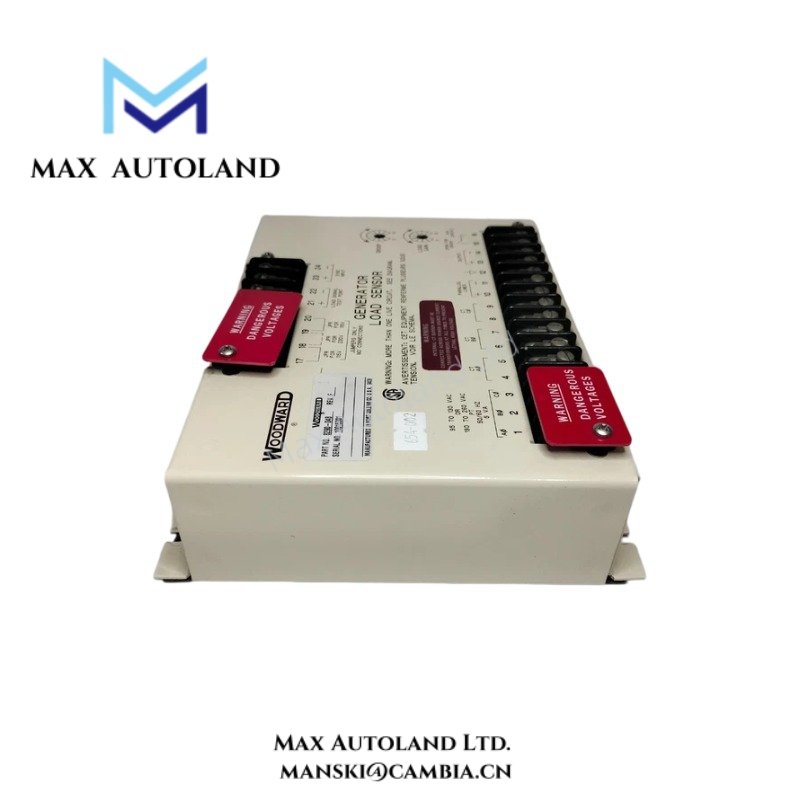

The 8290-048 is a Woodward generator load sensor designed for precise load measurement in power generation systems.
It delivers accurate electrical signal conversion for stable turbine and generator control applications.
Moreover, the module ensures real-time load monitoring to improve system efficiency and operational safety.
Engineers use 8290-048 to maintain balanced load distribution across industrial power systems.
Specification
| Parameter | Specification |
|---|---|
| Model | 8290-048 |
| Manufacturer | Woodward |
| Series | Generator Load Sensor Series |
| Module Type | Load Sensor / Signal Conditioning Module |
| Measurement Function | Generator load sensing and signal conversion |
| Input Signal Type | Electrical load feedback signals from generator systems |
| Output Signal Type | Analog control signal output for monitoring systems |
| Measurement Accuracy | High-precision industrial-grade load measurement |
| Response Time | Fast real-time load signal processing |
| Signal Processing | Continuous analog signal conditioning |
| Power Supply | 24 V DC nominal operating voltage |
| Operating Voltage Range | 18–32 V DC |
| Power Consumption | Low-power industrial electronic design |
| Interface Type | Standard industrial control system interface |
| Isolation | Electrical isolation between input and output circuits |
| Diagnostics | Built-in fault detection and signal status monitoring |
| LED Indicators | Power and signal status indication |
| Dimensions | Approx. 120 × 90 × 40 mm |
| Weight | Approx. 0.5–0.8 kg |
| Mounting Type | Panel or rack-mounted installation |
| Housing Material | Industrial-grade protective enclosure |
| Cooling Method | Passive convection cooling |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5%–95% non-condensing |
| Vibration Resistance | Designed for industrial power plant environments |
| Application | Generator load monitoring, turbine control, power plant automation |
FAQ
Q1: Is the product new and original?
Yes, the 8290-048 is brand new, original, and factory sealed.
Q2: Do you have stock available?
Yes, we maintain 8290-048 in stock for fast shipping.
Q3: What is the delivery time?
We ship within 3 days to 2 weeks depending on order size and logistics.
Q4: Which logistics do you use?
We commonly use DHL and other reliable international carriers.
Q5: What if there is a quality issue?
We support 30-day returns if the 8290-048 module has any quality problems.
Q6: What does this module measure?
The 8290-048 measures real-time generator load conditions for control systems.
