Overview

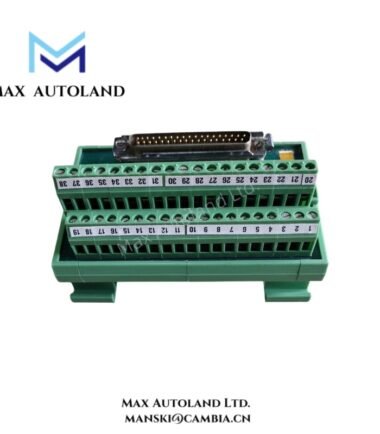

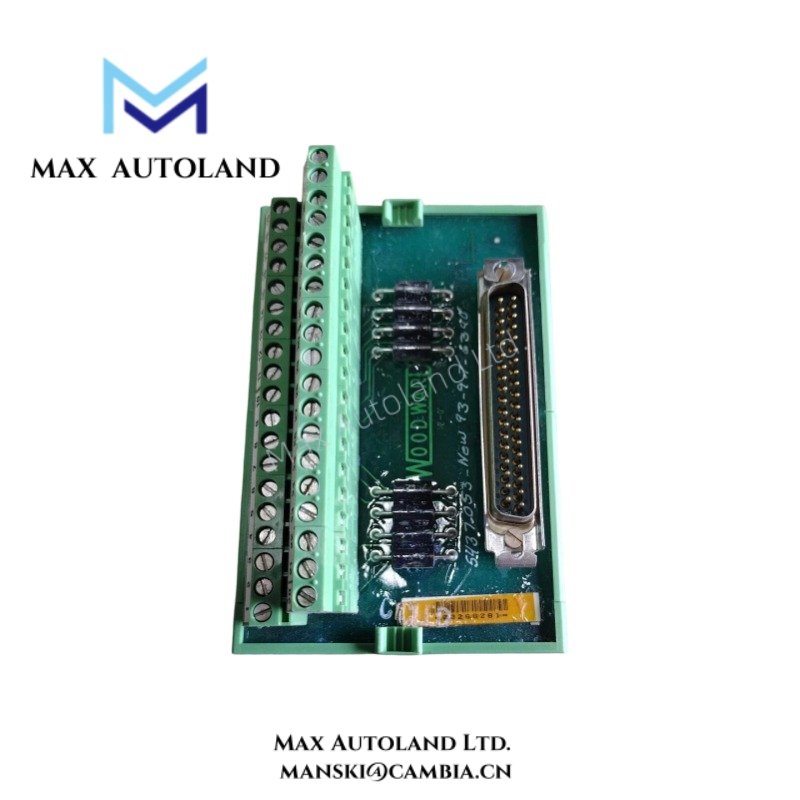

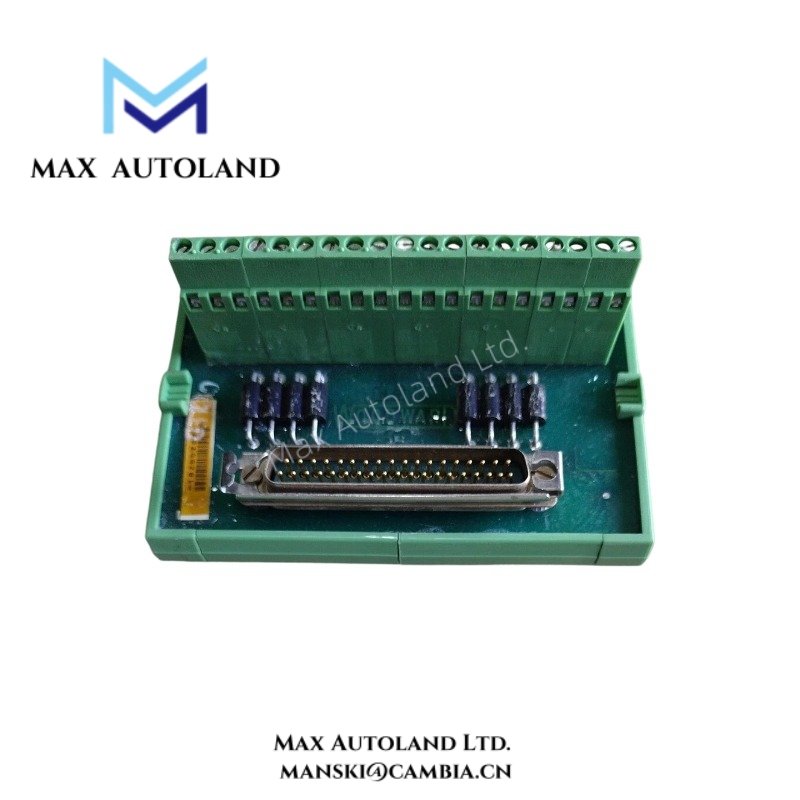

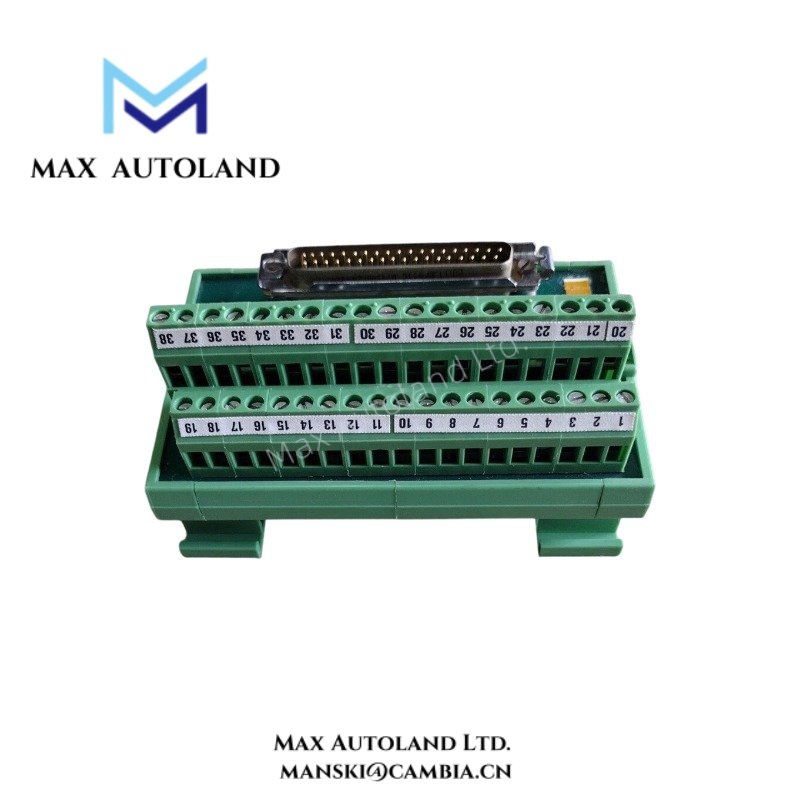

The Woodward 5437-053 Field Terminal Module provides stable field wiring termination for industrial control systems.
Woodward designed this module for NetCon and PLC-based architectures requiring organized signal interfacing.
It ensures reliable electrical connection between field devices and control system input/output modules.
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | Woodward |
| Series | NetCon / Field Terminal System |
| Model Number | 5437-053 |
| Product Type | Field Terminal Module / Relay Terminal Interface |
| Function | Field signal termination and wiring distribution |
| System Compatibility | Woodward control and PLC-based systems |
| Connector Type | 37-pin industrial connector |
| Signal Handling | Analog and digital I/O signal routing |
| Input Voltage | 12–24 VDC (system dependent) |
| Power Consumption | Up to ~5 W (typical industrial load) |
| Interface Type | VMEbus-based system integration |
| Wiring Method | Multi-point terminal block connection |
| Excitation Current | ~2 mA signal excitation support |
| Signal Accuracy | ±0.5% typical system-level accuracy |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5%–95% non-condensing |
| Mounting Type | Rack-mounted / panel-mounted inside control cabinet |
| Dimensions | 544 mm × 572 mm × 322 mm (system enclosure dependent) |
| Weight | ~0.45 kg |
| Construction | Industrial-grade reinforced housing |
| Protection Level | Industrial control cabinet protection (system dependent) |
| Compliance | CE, UL (market dependent configuration) |
| Status | Discontinued by manufacturer (common in surplus market) |
FAQ
Q1: What is the main function of Woodward 5437-053?
It provides field wiring termination and signal distribution for industrial control systems.
Q2: What connector type does it use?
It uses a 37-pin industrial connector for structured signal interfacing.
Q3: Is the module still in production?
No, the 5437-053 is generally listed as discontinued but still available in surplus markets.
Q4: What is the operating temperature range?
It typically operates between -40°C and +85°C in industrial environments.
Q5: What industries use this module?
It is widely used in turbine control, power plants, and automation systems.
