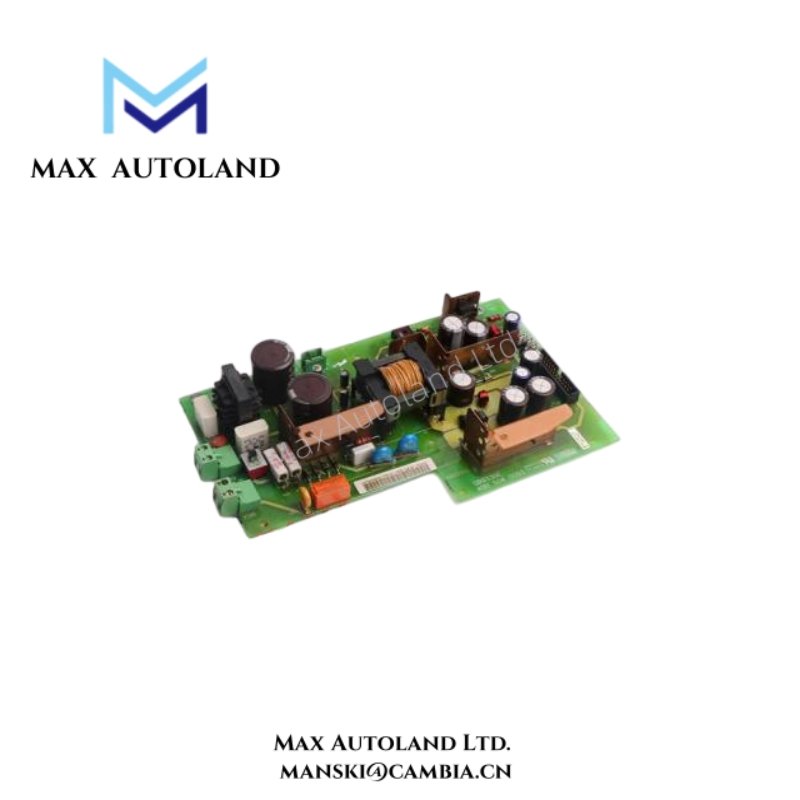

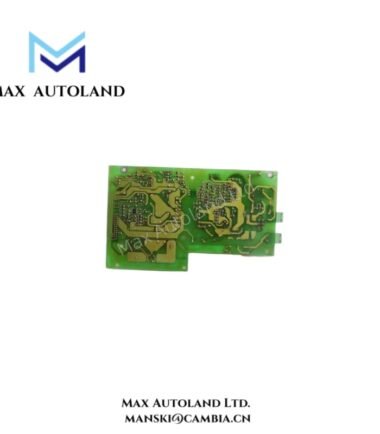

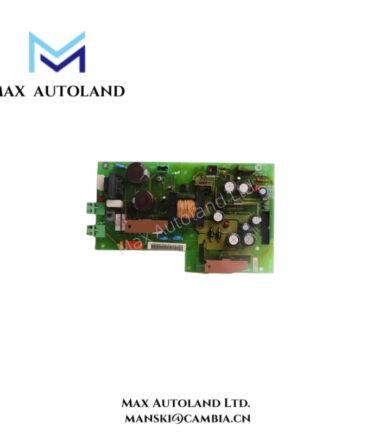

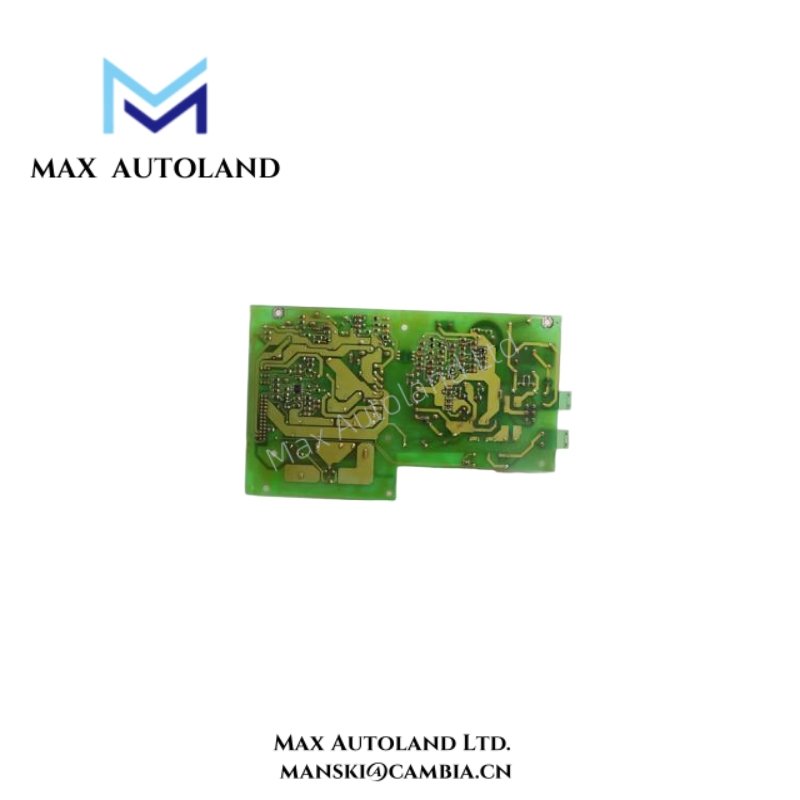

Overview
Specification
| Parameter | Specification |
|---|---|
| Part Number | 3ADT220090R0003 |
| Product Type | Power Supply Module |
| Series | ABB Drives SDCS |
| Input Voltage | 115 / 230 VAC ±10% |
| Output Voltage | 24 VDC (Nominal) |
| Output Current | Up to 6 A |
| Power Rating | 150 W |
| Efficiency | >85% |
| Protection | Overload, short-circuit, and thermal protection |
| Operating Temperature | 0°C to +55°C |
| Cooling Method | Natural convection |
| Mounting | Panel or DIN rail |
| Dimensions | Compact module form factor |
| Compliance | CE, UL, and RoHS standards |
FAQ
Q1: What is the main function of the ABB SDCS-POW-1 module?
A1: It provides regulated DC power to ABB drive systems and their control electronics.
Q2: Can the SDCS-POW-1 be used with other ABB drive series?
A2: Yes, it is compatible with several ABB SDCS and DCS drive platforms.
Q3: Does it include built-in protection features?
A3: Yes, it includes overload, short-circuit, and thermal protection for safe operation.
Q4: What industries commonly use this module?
A4: It is widely used in steel plants, paper mills, marine systems, and general manufacturing.
Q5: How does the module support system reliability?
A5: Its stable power output and robust design help maintain continuous drive system performance.
