Overview
Specification
| Parameter | Description |
|---|---|

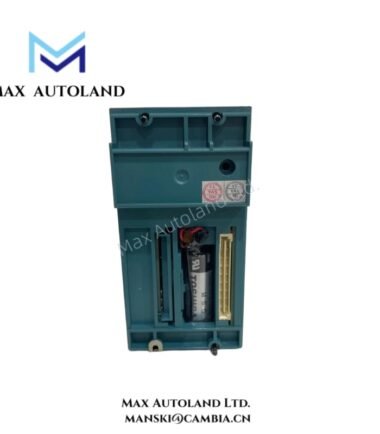

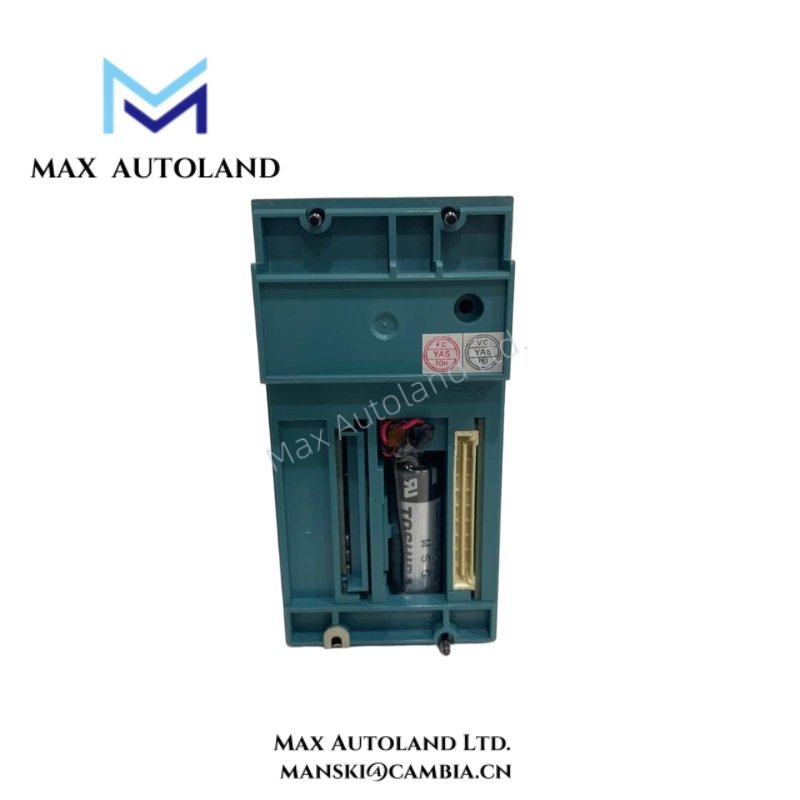

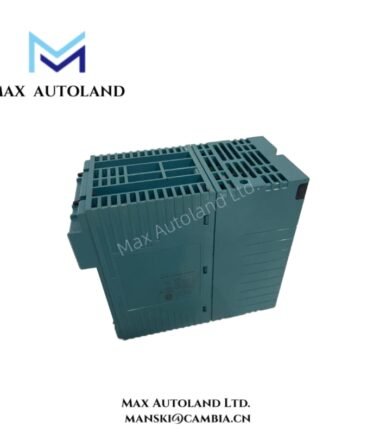

| Module Type | NFCP501-W15 S2 CPU Module |
| System Platform | Yokogawa CENTUM VP Field Control Station |
| Processor Performance | High-speed deterministic logic execution |
| Memory System | Dedicated program memory and protected working memory |
| Control Strategy Capacity | Supports advanced control blocks and extensive logic structures |
| Communication Interface | FCS real-time communication bus |
| Redundancy Support | Compatible with redundant FCS architectures |
| Diagnostics | Continuous module monitoring and watchdog supervision |
| Power Source | Backplane power supplied by FCS rack |
| Power Consumption | Low-power design for efficient system loading |
| Operating Temperature | 0°C to 55°C suitable for process industry facilities |
| Storage Temperature | −20°C to 70°C for stable long-term storage |
| Installed Location | FCS system rack (plug-in module) |
| Mounting Method | Card-type mounting with guided rail insertion |
| Humidity Range | 5%–95% RH non-condensing |
| EMC Immunity | Industrial-grade noise and interference protection |
| Cooling Method | Passive air-flow cooling without moving parts |
| Typical Cycle Time | Fast scan performance suited for large control strategies |
| I/O Handling | Works with Yokogawa remote and local I/O subsystems |
| Compliance | Meets global industrial control performance requirements |
FAQ
A1: It is designed for Yokogawa CENTUM VP Field Control Station architectures.
Q2: Does this CPU module support redundancy?
A2: Yes, it integrates with redundant FCS configurations to increase system availability.
Q3: Is it suitable for advanced or large control strategies?
A3: Yes, the module handles complex logic and extensive control loops with stable cycle times.
Q4: What industries commonly use this module?
A4: It is widely used in refining, petrochemicals, chemical plants, gas processing, and power generation.
Q5: Does the module require frequent maintenance?
A5: No, normal inspections and periodic backups typically keep the module stable for many years.
