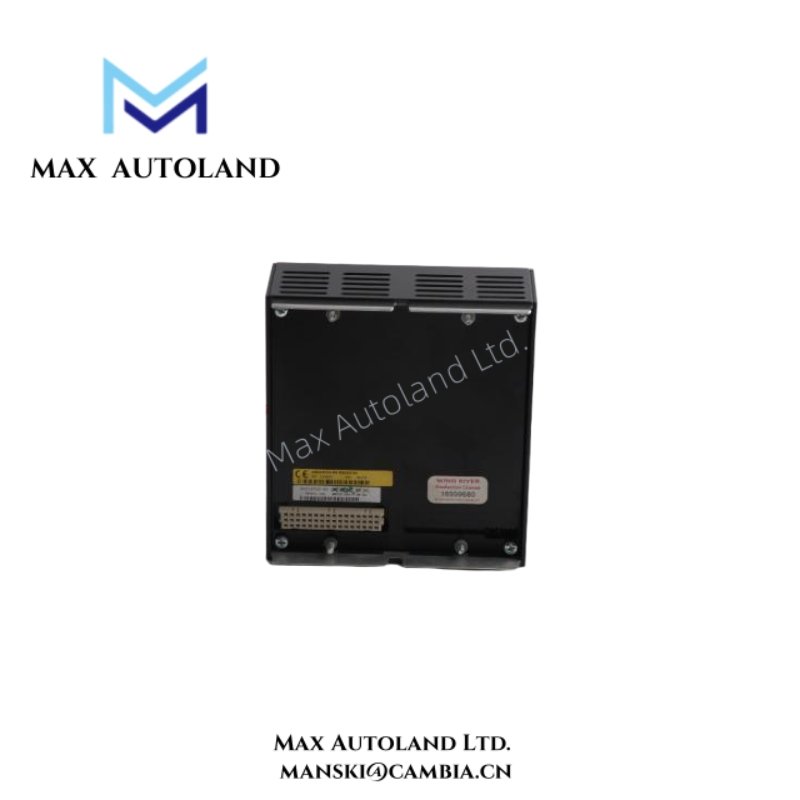

Overview
Specification
| Category | Specification |
|---|---|
| Processor Type | x86 architecture (Pentium-class equivalent) |
| CPU Performance | 133 MHz |
| Mass Storage (CF) | Supported without restriction |
| Non-Volatile RAM (nvRAM) | 512 kB |
| Working Memory (DRAM) | 256 MB |
| Program Memory (PC Card) | PCC201/xx with 16 / 32 / 64 MB Flash |
| Internal Flash Memory | 16 MB internal |
| Operating System | VxWorks with Bachmann system extensions on internal Flash |
| Serial Interfaces | 1 × RS232 + 1 × RS232/RS422/RS485 |
| Ethernet Interfaces | 2 × 10/100 Base-Tx |
| USB Interface | 1 × USB 2.0 |
| CAN Interface | 1 × CAN (10 kbit/s to 1 Mbit/s) |
| Synchronization | Synchronizing pulse also for Ethernet and fieldbuses (SERCOS, CAN) |
| Real-Time Clock | Integrated with battery backup |
| Status Indicators | 3 diagnostic LEDs |
| CPU Identification | Selectable via rotary hexadecimal switch |
| Power Supply Voltage | 24 VDC (18 to 34 V range) |
| Nominal Power Consumption | Approx. 17 W including I/O |
| Module Power Output | +5 V / 2000 mA; +15 V / 250 mA; -15 V / 200 mA |
| Watchdog Function | Integrated hardware watchdog |
| Operating Temperature | -30°C to +60°C (fanless operation) |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity (Operation) | 5% to 95%, with condensation allowed |
| Relative Humidity (Storage) | 5% to 95%, with condensation allowed |
| Certifications – General | CE, UL/cUL, CCC |
| Certifications – Marine | GL/DNV, LR, ABS, BV |
| Ambient Conditions | Standard and ColdClimate variants available |
| Form Factor | Compact modular design for M1 system |
| Mounting Method | DIN-rail or modular rack installation |
FAQ
A1: The MX213 offers a balance between high computing performance and low energy consumption, ideal for mid-range automation systems.
Q2: Can the MX213 be integrated into existing automation setups?
A2: Yes. It supports open communication protocols like Modbus TCP and CANopen, allowing easy integration into diverse industrial networks.
Q3: What type of environment is the MX213 designed for?
A3: The MX213 is built for harsh industrial and marine environments, with wide operating temperature and vibration tolerance.
Q4: How does the MX213 handle system faults?
A4: It includes advanced diagnostics and error reporting, allowing fast identification and recovery from system anomalies.
Q5: Is the MX213 suitable for renewable energy applications?
A5: Absolutely. It is widely used in wind turbine and solar plant control systems, where reliability and real-time performance are crucial.
