Overview
Specification
| Parameter | Specification |
|---|---|

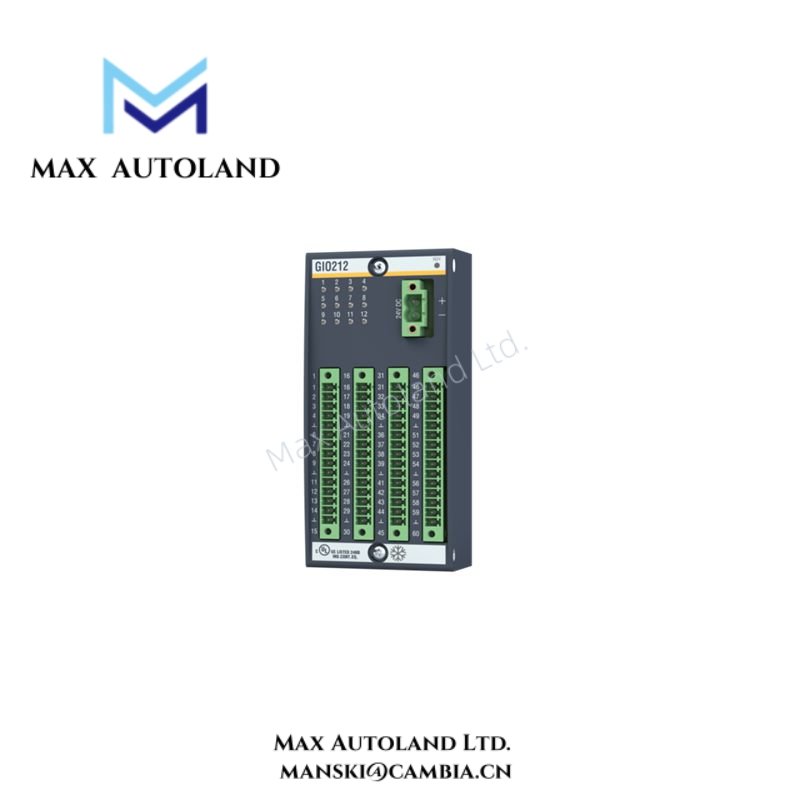

| Module Type | Universal Input/Output Module |
| Model Number | GIO212 |
| Number of Channels | 12 (configurable as input or output) |
| Input Voltage Range | 0–30 V DC |
| Analog Input Range | ±10 V or 0/4–20 mA |
| Analog Output Range | ±10 V or 0/4–20 mA |
| Resolution (Analog) | 12-bit |
| Digital Input Thresholds | 0 V (low), >8 V (high) |
| Output Type | High-side switching (sourcing) |
| Maximum Output Current | 0.5 A per channel |
| Galvanic Isolation | 500 V (system to field) |
| Power Supply Voltage | 18–34 V DC (nominal 24 V DC) |
| Internal Current Consumption | Approx. 180 mA at 5 V DC |
| Operating Temperature | –30 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Relative Humidity (Operation) | 5% to 95%, non-condensing |
| Certifications | CE, UKCA, cULus, ABS, DNV, BV, KR, LR, NK, RINA |
| Protection Features | Short-circuit, overload, reverse polarity |
| Dimensions | Approx. 186 × 35 × 118 mm |
| Weight | Approx. 230 g |
FAQ
It supports both analog and digital input/output configurations, allowing flexible use across different applications.
Q2: Can I mix input and output channels on the same module?
Yes, each of the 12 channels can be independently configured as an input or output via software.
Q3: What types of signals does it support?
The GIO212 handles voltage and current signals for both analog and digital control, with ±10 V and 0/4–20 mA ranges.
Q4: Is it compatible with Bachmann’s M1 system?
Absolutely. The GIO212 integrates seamlessly with the M1 controller series for scalable automation architectures.
Q5: Does the GIO212 meet marine and industrial standards?
Yes. It is certified by major organizations including ABS, DNV, BV, KR, LR, NK, and RINA.
