Overview

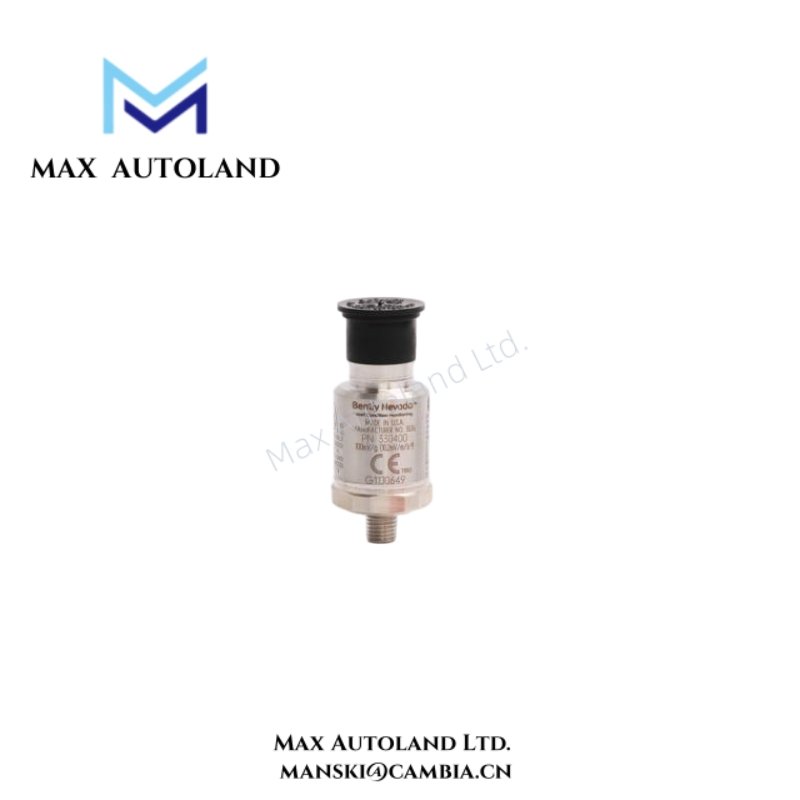

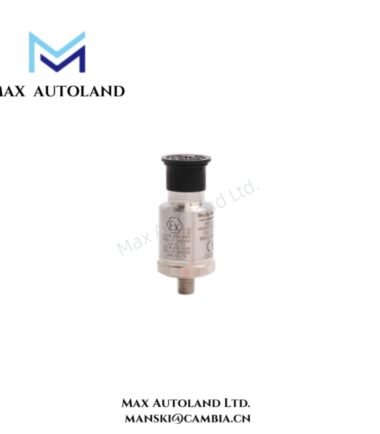

Constructed from 316 stainless steel with hermetic sealing, the 330400-02-00 provides exceptional resistance to moisture, oil, and chemical contaminants. Moreover, its integral cable design ensures stable electrical connections, reducing noise interference and signal loss. Therefore, it is an ideal choice for continuous monitoring in turbines, compressors, motors, and other critical equipment.
Specification
| Parameter | Specification |
|---|---|
| Model | Bently Nevada 330400-02-00 |
| Transducer Type | Piezoelectric accelerometer |
| Sensitivity (±5%) | 50 mV/g (5.1 mV/m/s²) |
| Measurement Range | ±490 m/s² (±50 g) |
| Frequency Range (±3 dB) | 2 Hz to 10,000 Hz |
| Mounted Resonant Frequency | >25 kHz |
| Amplitude Linearity (1–50 g pk) | ±1% |
| Transverse Sensitivity | ≤5% |
| Output Bias Voltage | +10 VDC ±0.5 V |
| Power Supply (Constant Current) | 2–10 mA at 18–30 VDC |
| Broadband Noise (1 Hz–10 kHz) | ≤100 µg rms |
| Output Impedance | <100 Ω |
| Operating Temperature Range | -54°C to +121°C (-65°F to +250°F) |
| Shock Limit (Peak) | 4900 m/s² (500 g) |
| Case Material | 316 Stainless steel |
| Sealing | Hermetic (welded construction) |
| Connector / Cable | Integral, PTFE-insulated cable |
| Mounting Thread | 1/4-28 UNF |
| Mounting Thread Option | M8 x 1 integral stud |
| Agency Approval Option | None |
| Weight | Approx. 90 g (3.2 oz) |
| Compatible Systems | Bently Nevada 3500, 3701/46E, Trendmaster Pro |
FAQ
A1: It integrates seamlessly with Bently Nevada 3500, 3701/46E, and Trendmaster Pro systems.
Q2: Can this accelerometer operate in high-temperature environments?
A2: Yes, it functions reliably from -54°C to +121°C (-65°F to +250°F).
Q3: What makes the 330400-02-00 suitable for industrial use?
A3: Its 316 stainless steel construction, hermetic sealing, and wide frequency response ensure dependable performance in harsh industrial environments.
Q4: What is the main difference between 330400-02-00 and 330400-02-05?
A4: The key difference lies in the mounting thread option — the 02-00 model features an M8 x 1 integral stud, while the 02-05 uses ¼-28 UNF.
Q5: Does Bently Nevada provide calibration or field support?
A5: Yes, Baker Hughes offers global technical assistance, calibration, and maintenance support for all Bently Nevada vibration monitoring products.
