Overview
Specification
| Parameter | Specification |
|---|---|
| Module Type | 24 VDC Sourcing Output Module |

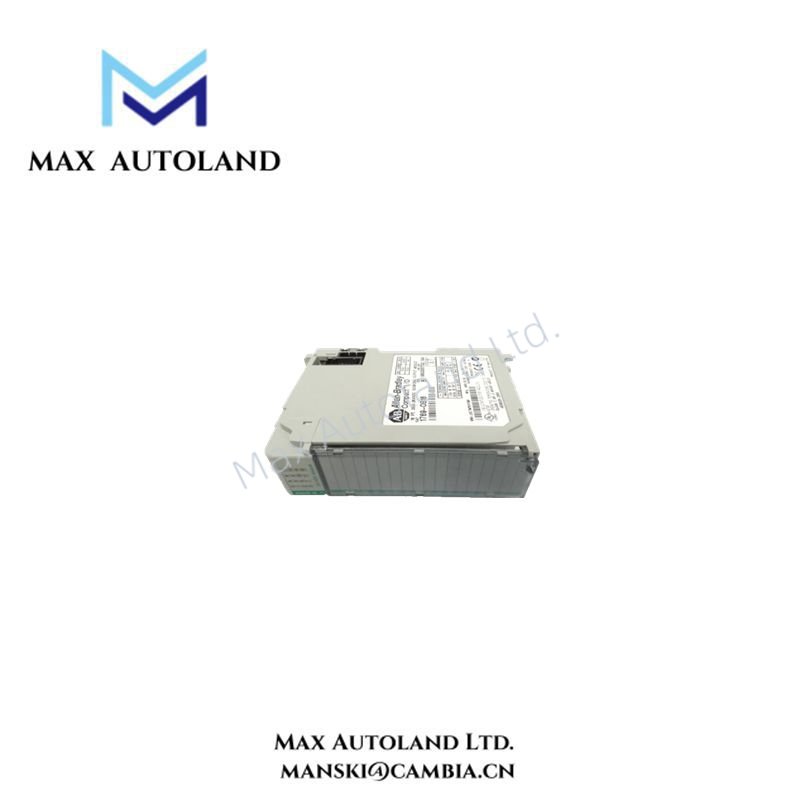

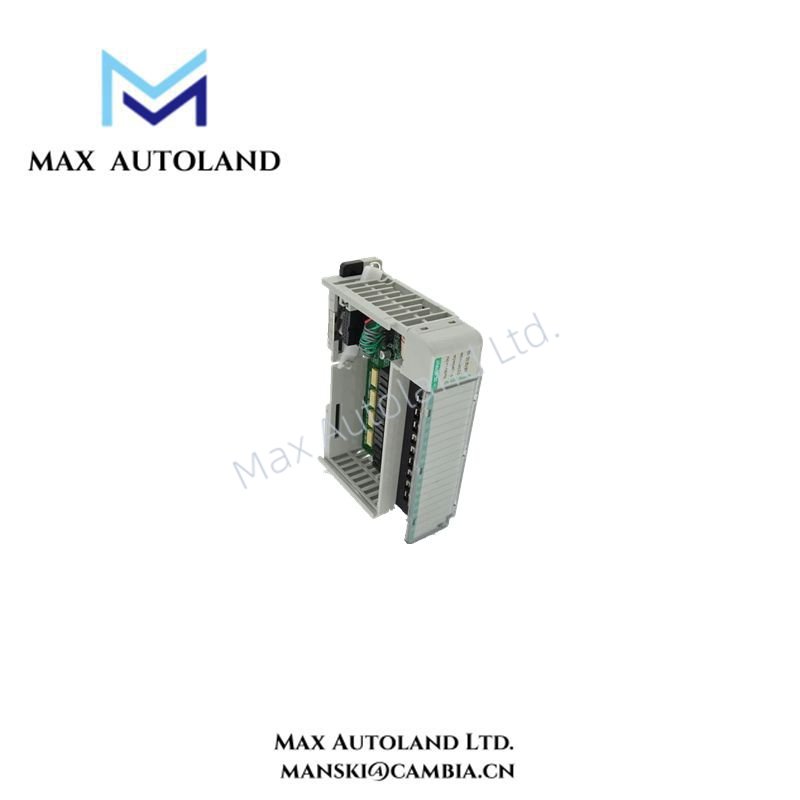

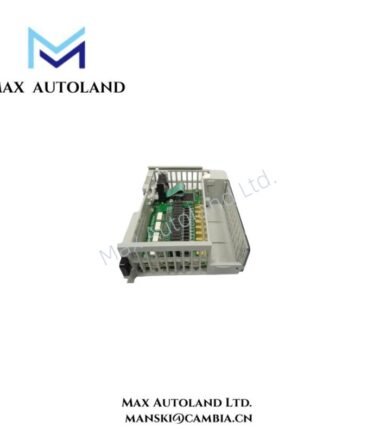

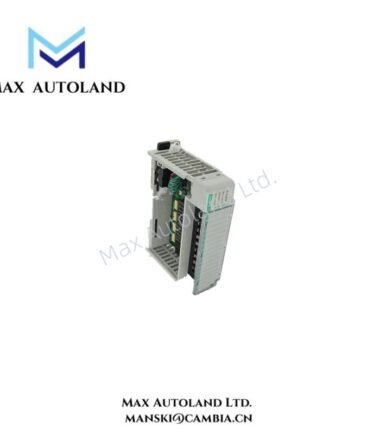

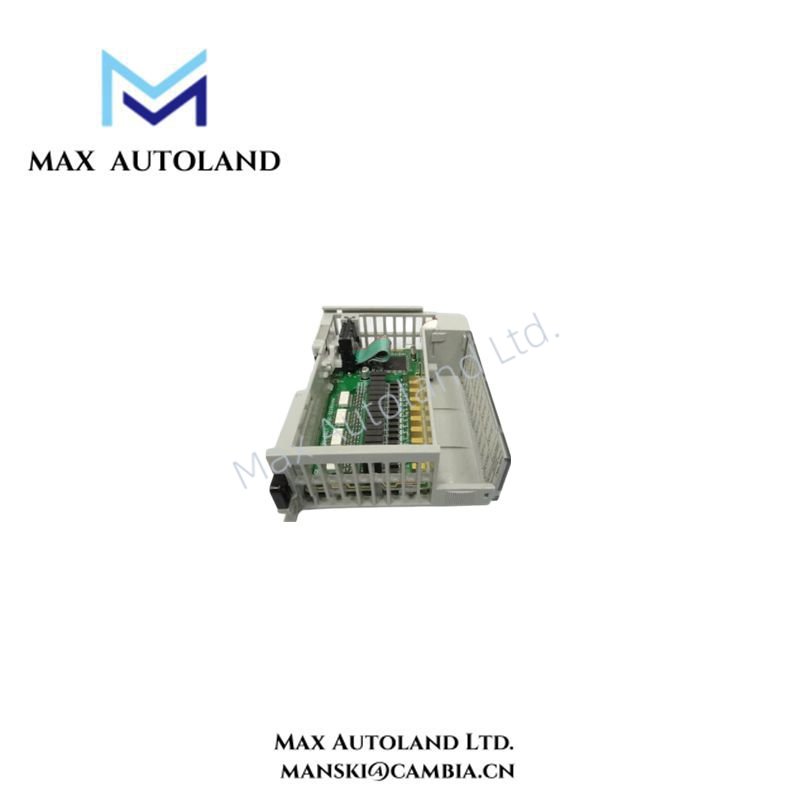

| Model | 1769-OB16 |
| Manufacturer | Rockwell Automation |
| Output Points | 16 |
| Output Voltage | 24 V DC |
| Output Current | 0.5 A per channel |
| Isolation | Channel-to-backplane and channel-to-channel |
| Response Time | ≤ 5 ms typical |
| Mounting | 1769 CompactLogix chassis |
| Dimensions | 90 mm × 35 mm × 100 mm |
| Weight | 0.27 kg |
| Operating Temperature | 0°C to +55°C |
| Certifications | UL, CE compliant |
| Energy Storage | Powered via backplane; no external storage required |
FAQ
Yes, 1769-OB16 is 100% original Rockwell Automation, factory-sealed.
How fast is the shipping?
Inventory is available and ships within 3 days to 2 weeks depending on order size.
Which logistics companies are used?
We typically use DHL, FedEx, and UPS for secure and timely delivery.
What if there is a quality issue?
We support returns within 30 days for any quality-related issues.
How many output channels does the 1769-OB16 provide?
The 1769-OB16 provides 16 independent 24 VDC sourcing output channels.
Does this module offer protection against short-circuits?
Yes, it includes robust short-circuit and overload protection for all output channels.
Manual/Datasheet PDF
Rockwell Automation Top Products
| Triconex | Foxboro | Allen-Bradley |
| 3625 | FBM233 | 1747-SDN |
| 3700A | FCP270 | 1769-IQ16 |
| 4329 | FBM204 | SST-PFB-SLC |
| 3008 | FBM230 | 1756-BA2 |
| 4119A | FBM228 | 1756-CNBR |

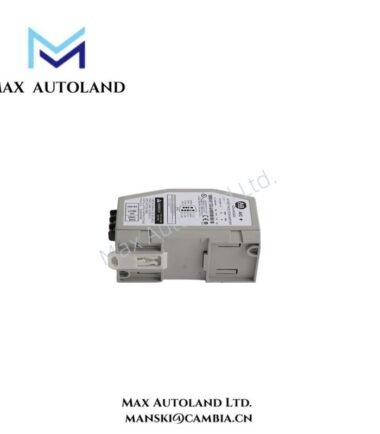

| 3636T | FBM237 | 1761-NET-AIC |
