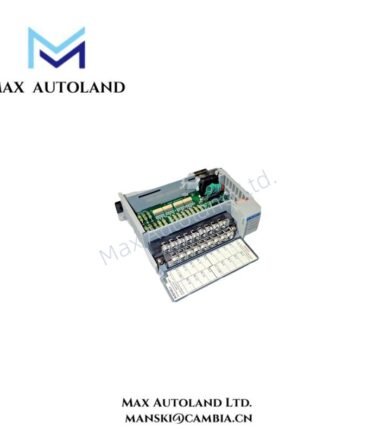

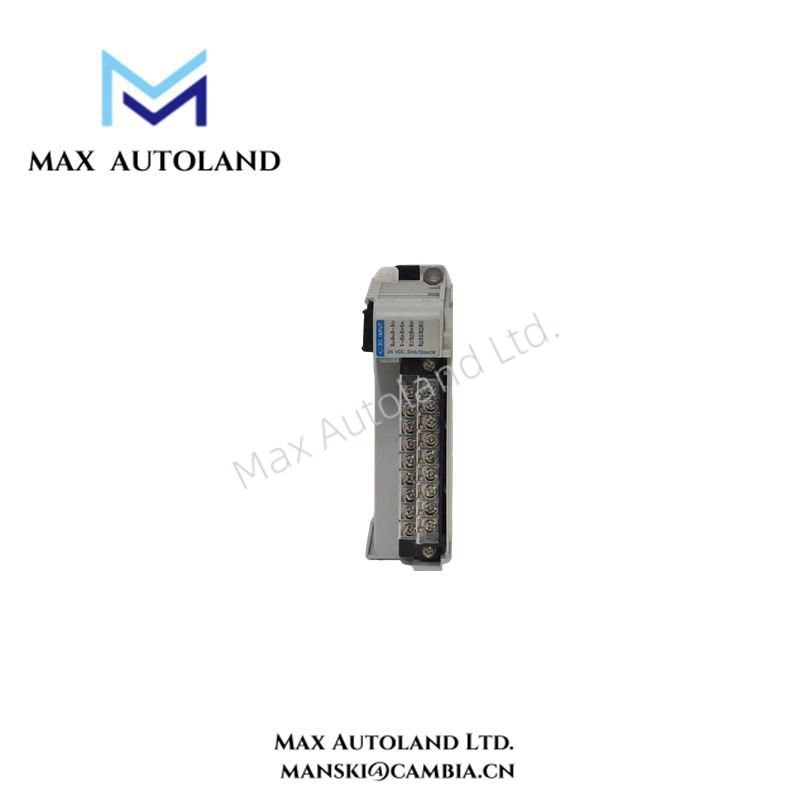

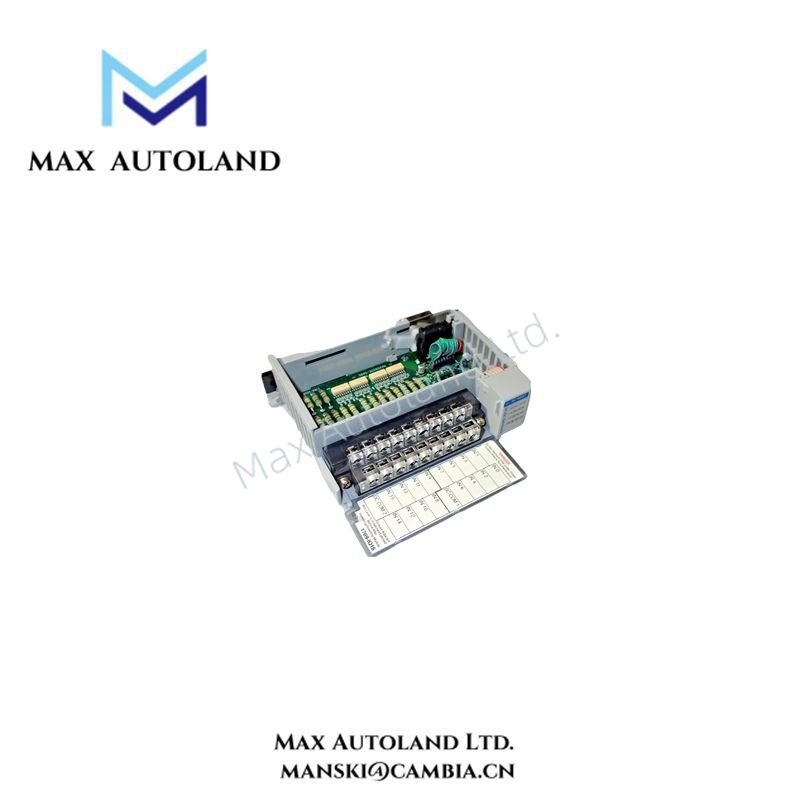

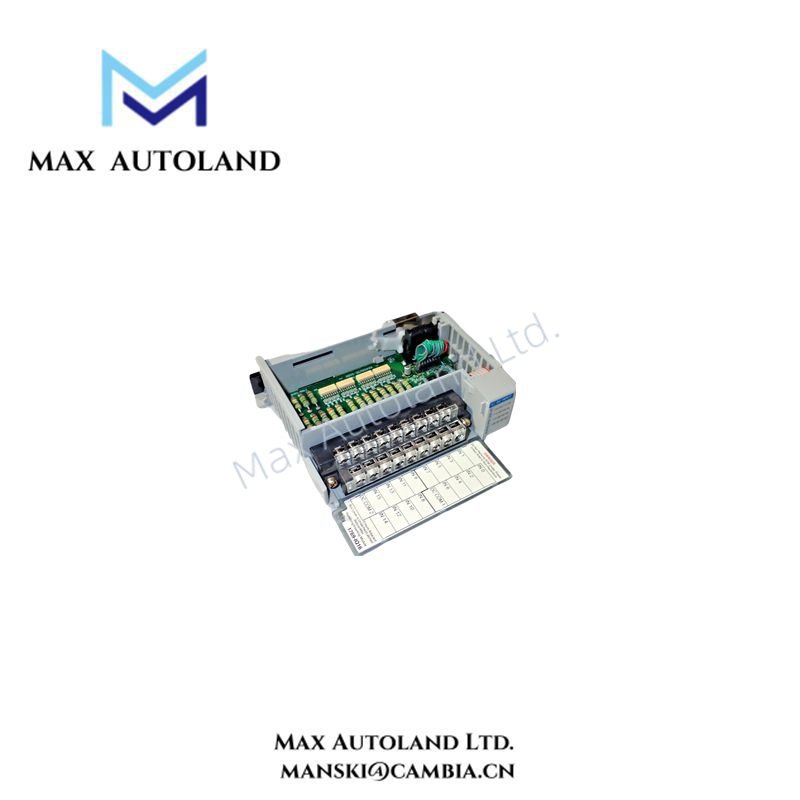

Overview
Specification
| Parameter | Specification |
|---|---|
| Module Type | 16-Point 24VDC Digital Input |
| Model | 1769-IQ16 |
| Manufacturer | Rockwell Automation |
| Input Points | 16 |
| Input Voltage | 24 V DC |
| Input Current | 3.5 mA typical per point |
| Isolation | Channel-to-backplane and channel-to-channel |
| Response Time | ≤ 5 ms typical |
| Mounting | 1769 CompactLogix chassis |
| Dimensions | 90 mm × 35 mm × 100 mm |
| Weight | 0.25 kg |
| Operating Temperature | 0°C to +55°C |
| Certifications | UL, CE compliant |
| Energy Storage | Not required; powered via backplane |
FAQ
How fast is the shipping?
Inventory is available and ships within 3 days to 2 weeks depending on order size.
Which logistics companies are used?
We typically use DHL, FedEx, and UPS for secure and timely delivery.
What if there is a quality issue?
We support returns within 30 days for any quality-related issues.
How many input channels does the 1769-IQ16 provide?
The 1769-IQ16 provides 16 independent 24VDC digital input channels.
Which systems are compatible with this module?
It supports CompactLogix and MicroLogix 1500 controllers for versatile industrial applications.
Manual/Datasheet PDF
Rockwell Automation Top Products
| Triconex | Foxboro | Allen-Bradley |

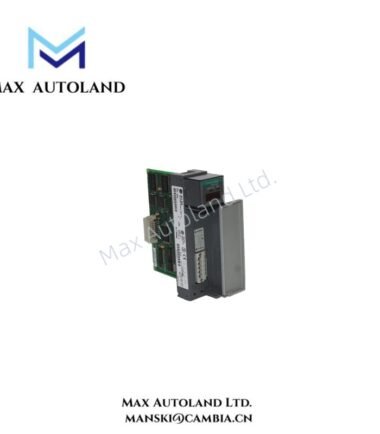

| 3625 | FBM233 | 1747-SDN |
